Valve Body Assembly: Components: Illustration

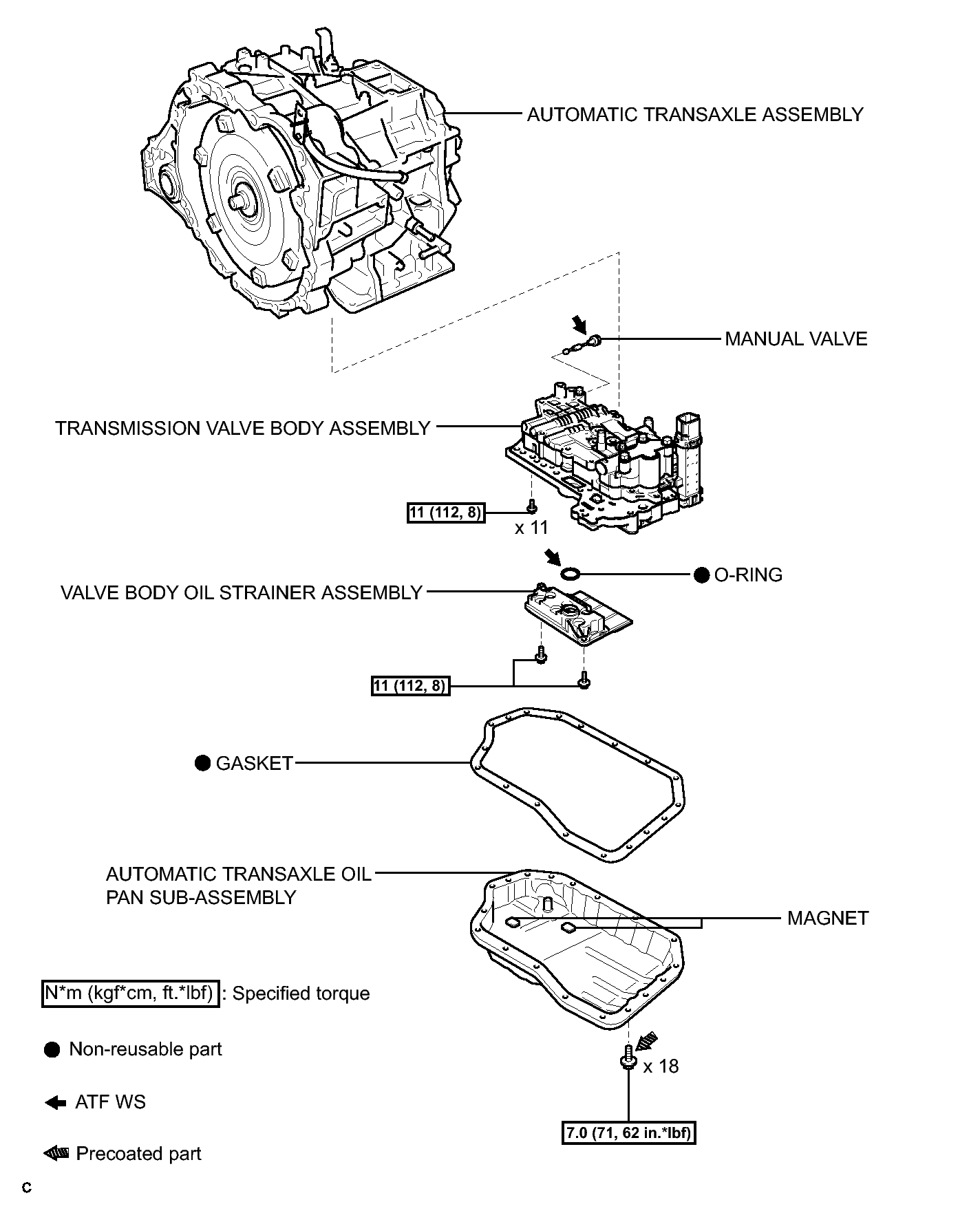

Fig 1: View Of Automatic Transaxle Assembly Components With Torque Specifications

GTY139030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
