Transmission Wire: Components: Illustration

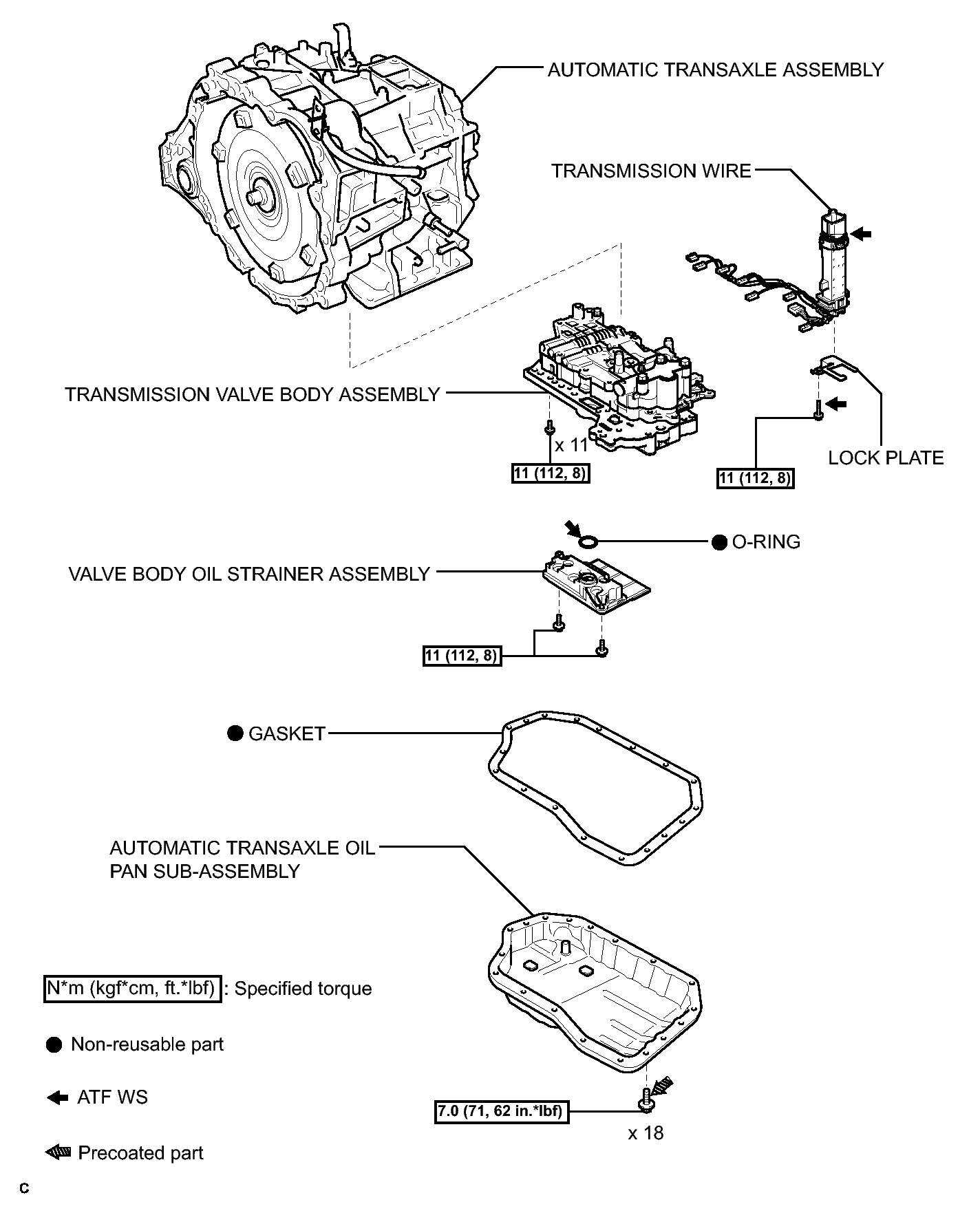

Fig 1: View Of Automatic Transaxle Assembly Components With Torque Specifications

GTY133958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
