Park / Neutral Position Switch: Components: Illustration

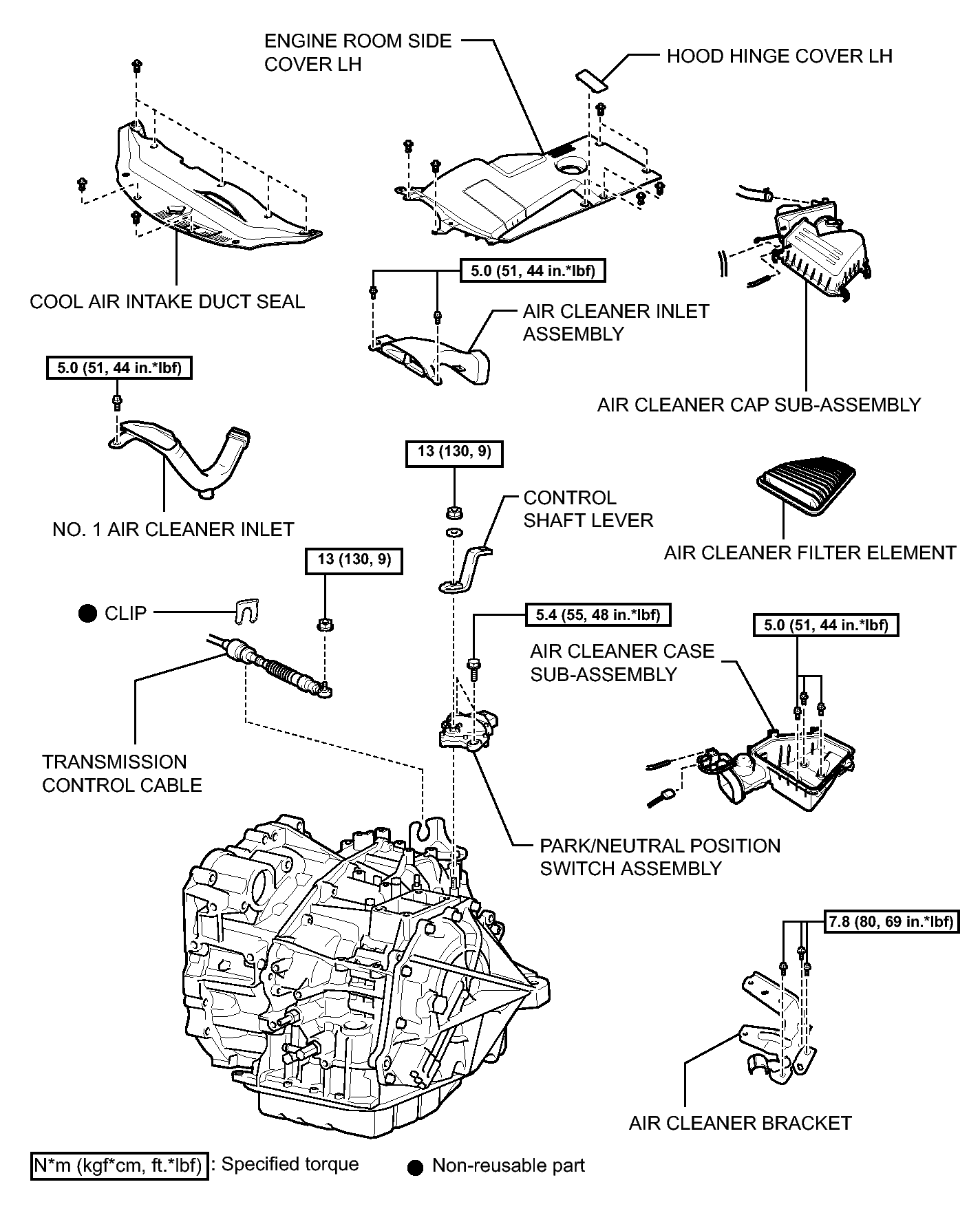

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications

GTY111438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
