Oil Pump: Components: Illustration

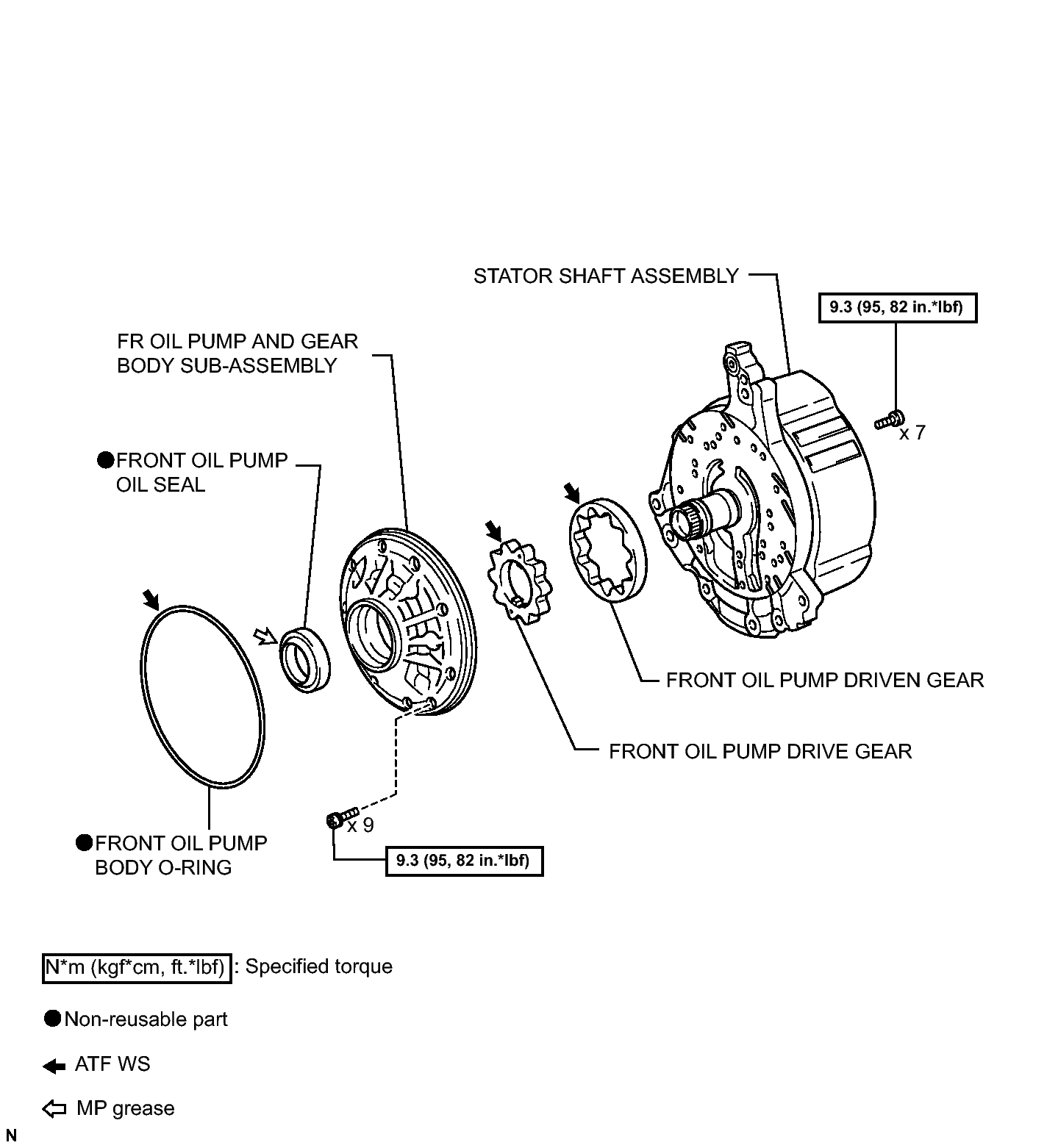

Fig 1: Oil Pump Replacement Components With Torque Specifications

GTY112173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
