Seat Memory Switch: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 460 and 2009 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH side.
A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS

INSTALL SEAT MEMORY SWITCH

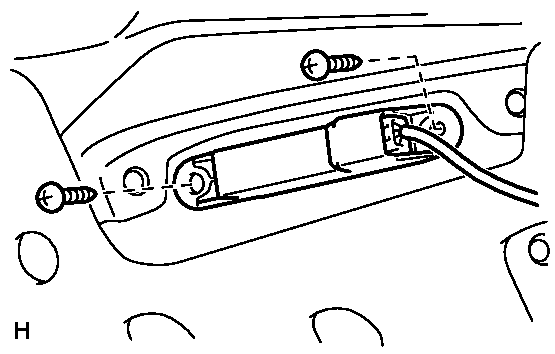

Fig 1: Identifying Memory Switch Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the switch with the 2 screws.
2. Connect the connector.
INSTALL FRONT DOOR TRIM COVER LH

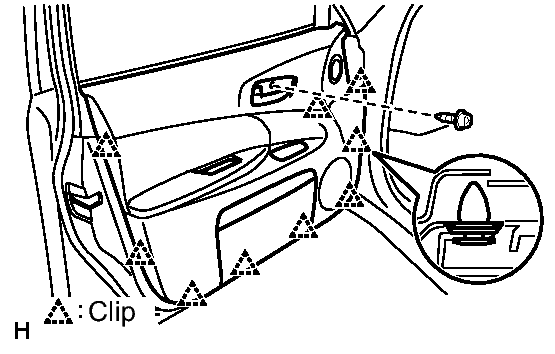

Fig 2: Identifying Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the 2 cables to the inside handle.
2. Attach the 9 clips and install the trim cover.
3. Attach the 2 claws to install the trim lower cover.

  Fig 3: Identifying Trim Lower Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the screw.
INSTALL DOOR INSIDE HANDLE BEZEL

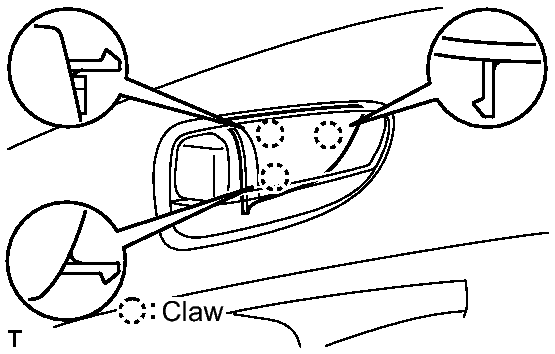

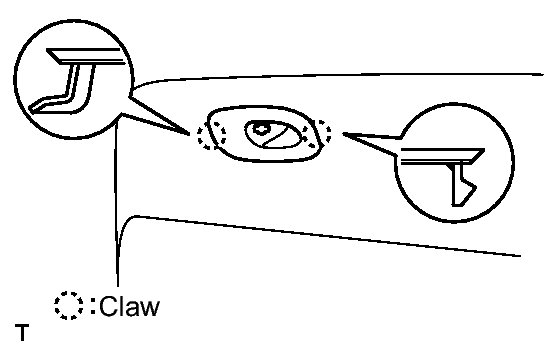

Fig 4: Identifying Door Inside Handle Bezel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 3 claws to install the bezel.
