Room Temperature Sensor: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus GS 460 and 2009 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

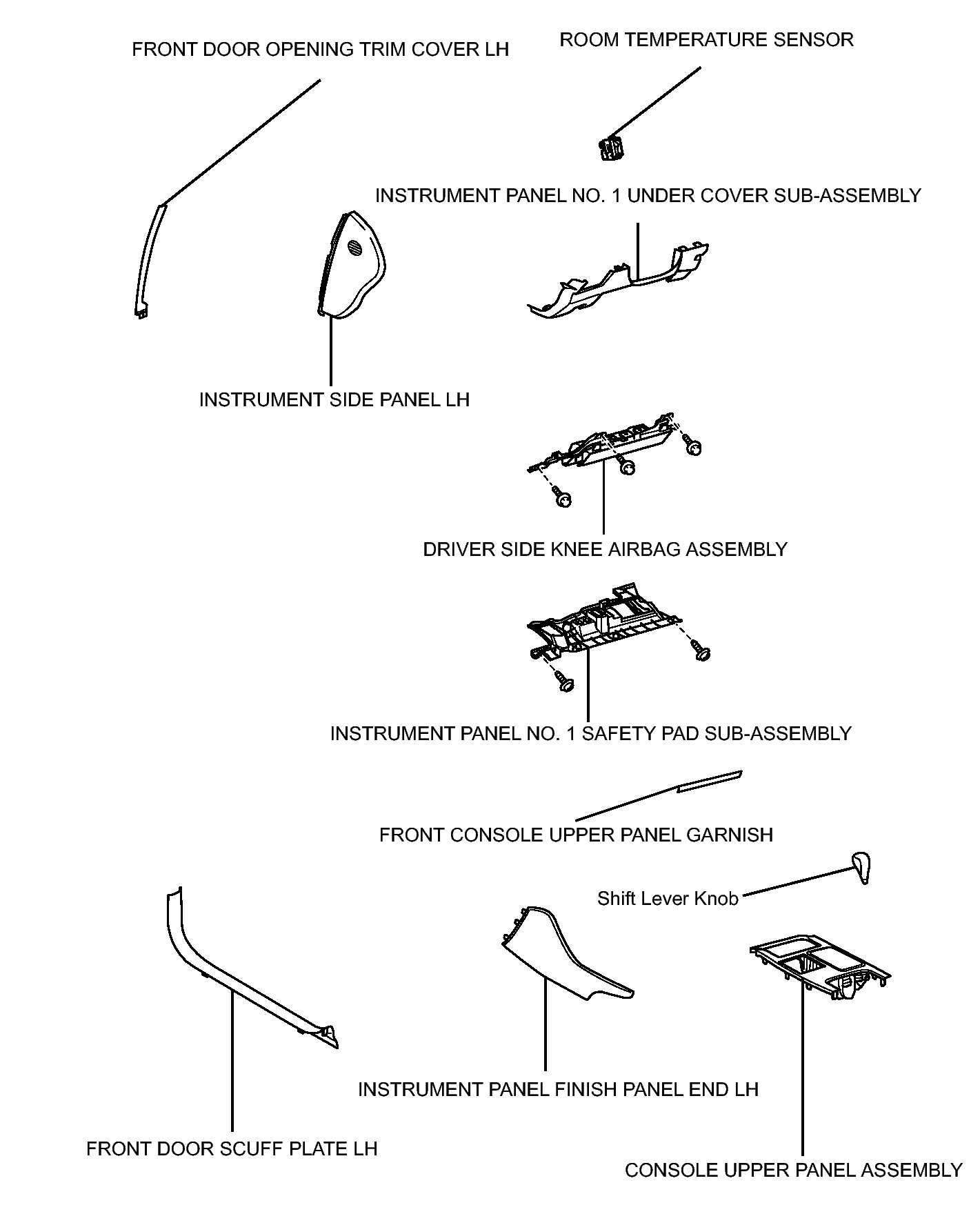

Fig 1: Identifying Room Temperature Sensor Replacement Components
GTY102334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
