Power Outlet (Service Information): Clock: Components: Illustration

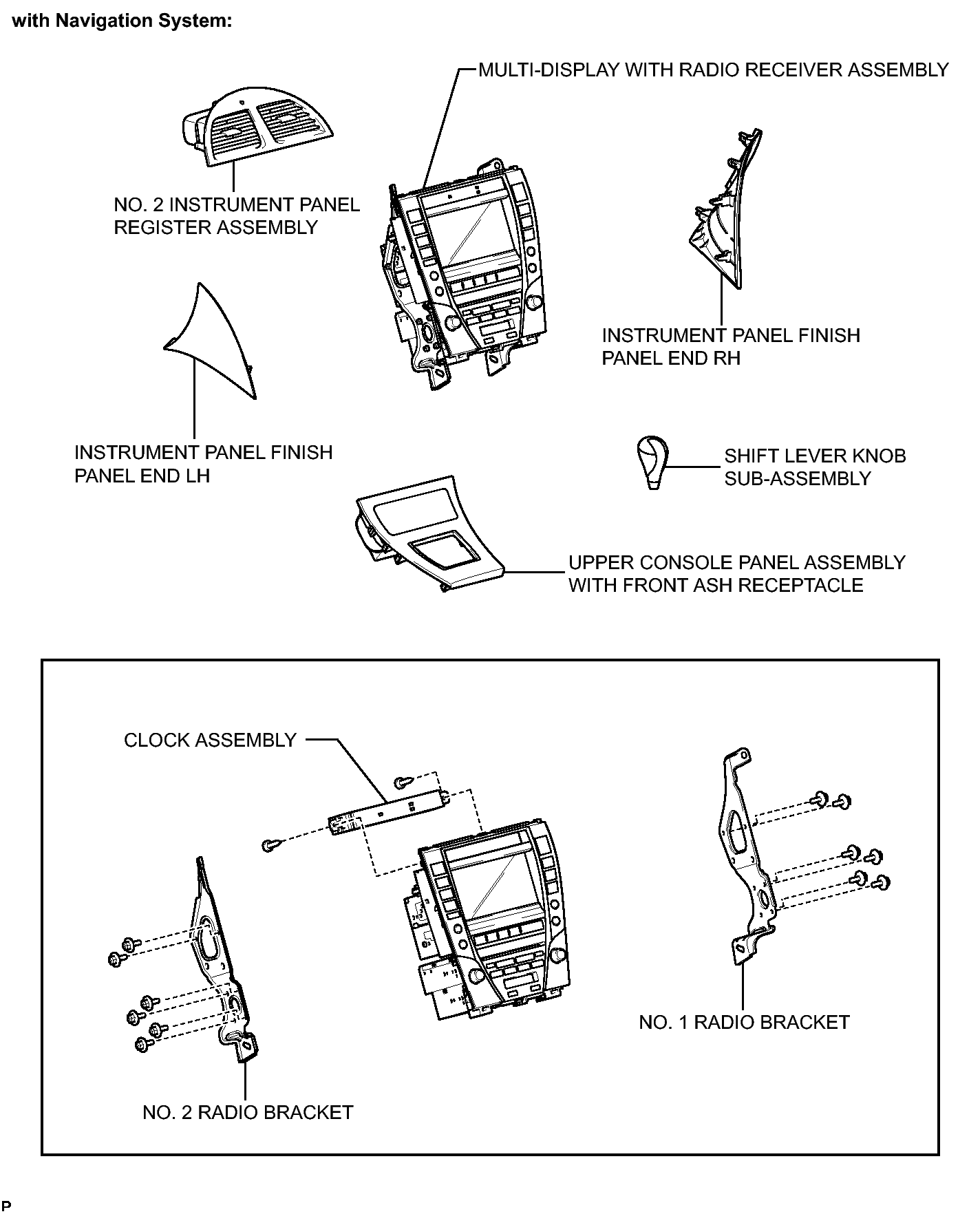

Fig 1: Identifying Clock System Components

GTY139202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
