Climate Control Seat and Seat Heater (w/ Climate Control Seat): Notes

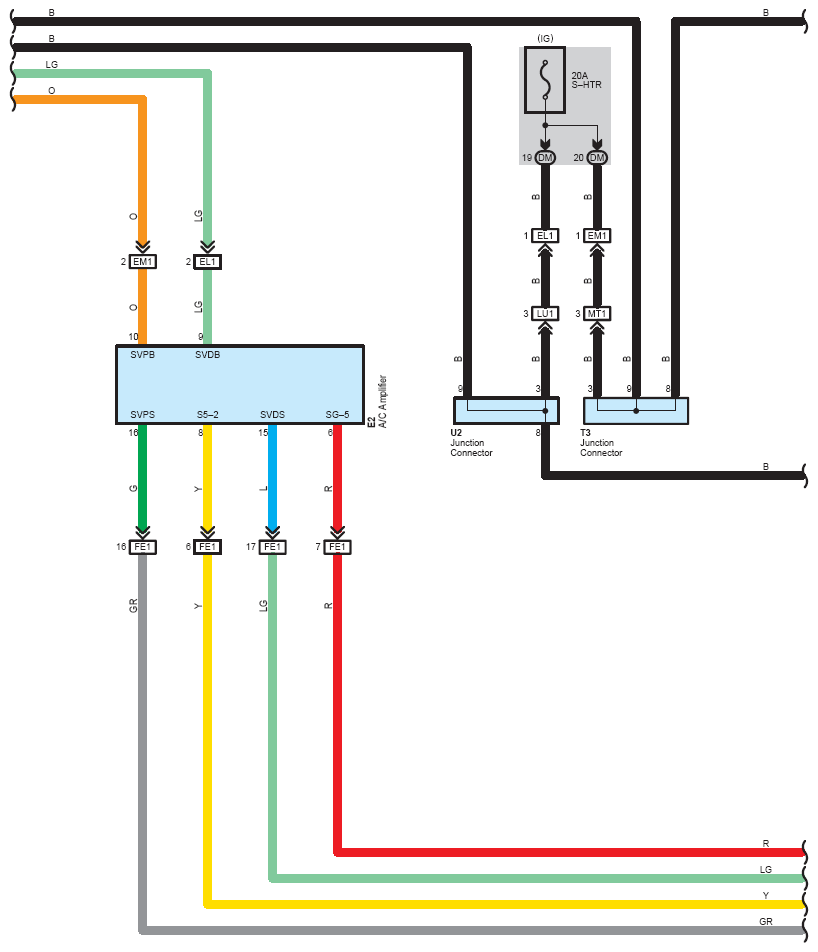

Fig 1: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

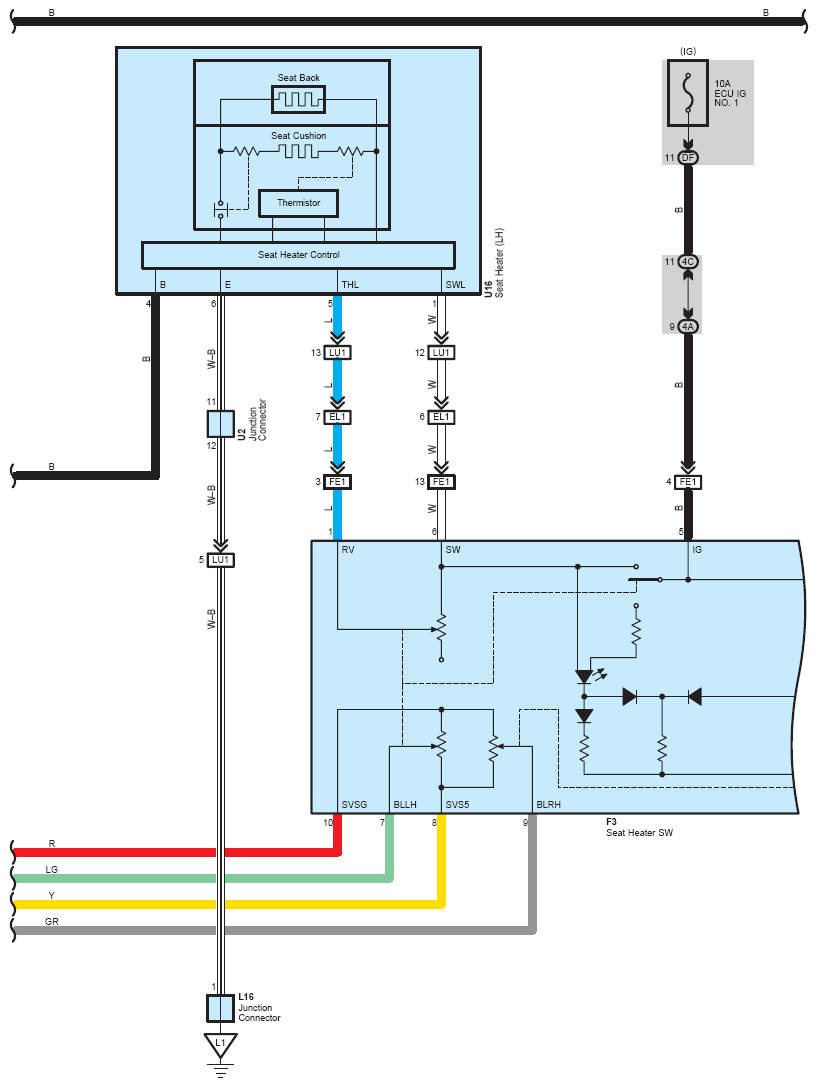

Fig 2: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

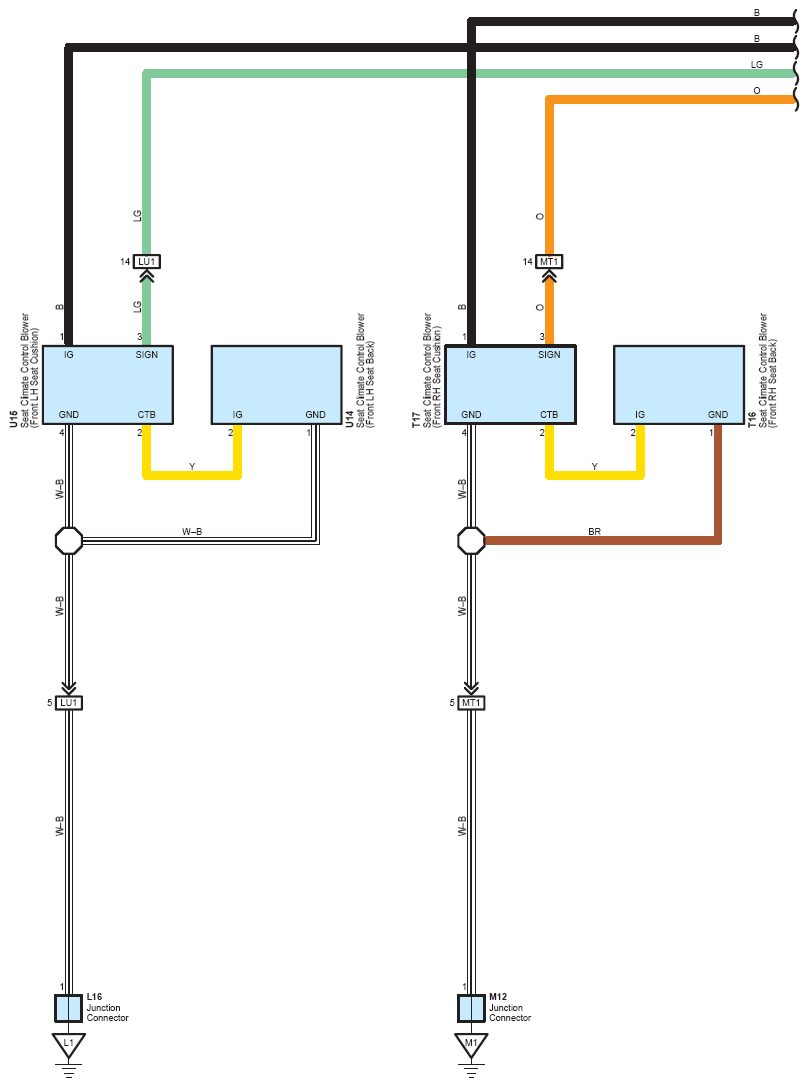

Fig 3: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (3 Of 4)

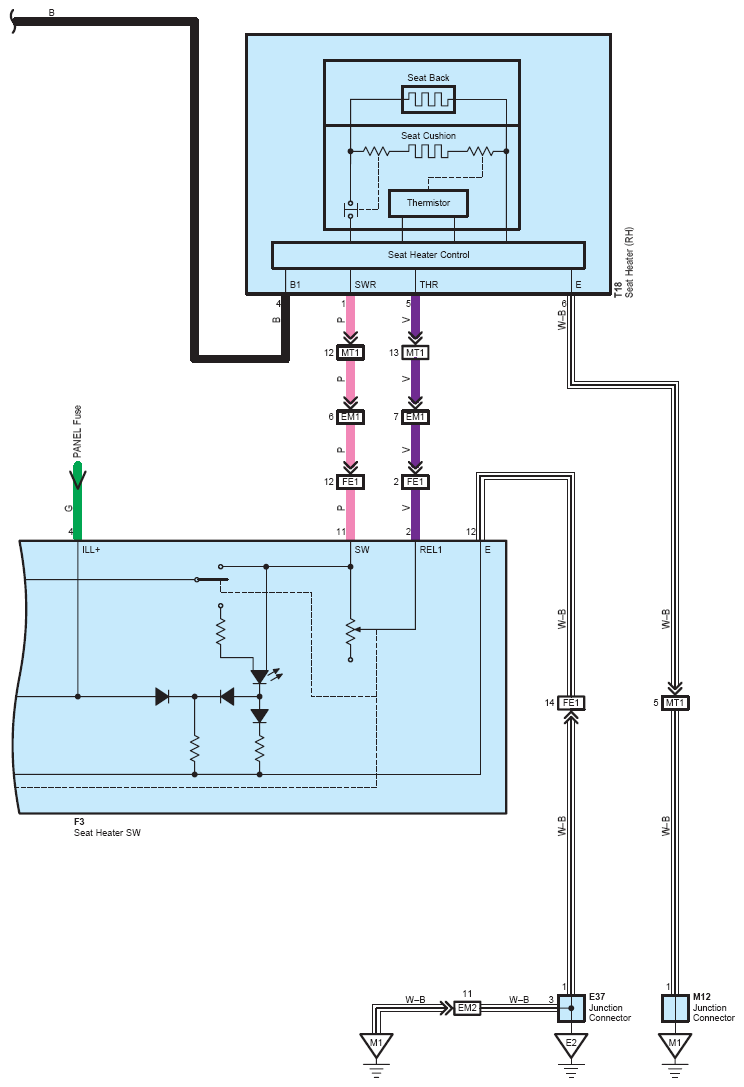

Fig 4: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (4 Of 4)
