Skid Control Buzzer: Components: Illustration

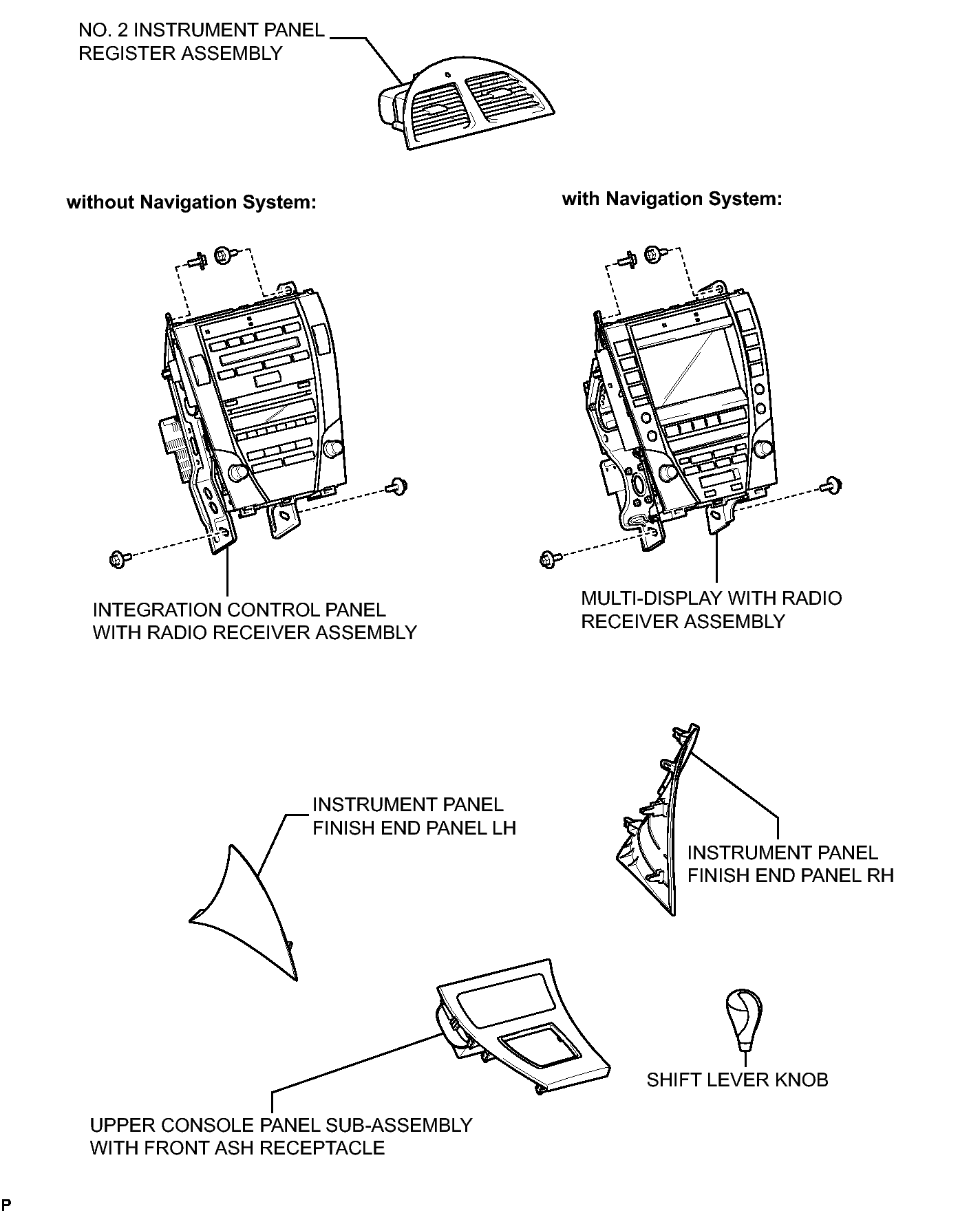

Fig 1: Identifying Skid Control Buzzer Replacement Components (1 Of 2)
GTY111260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

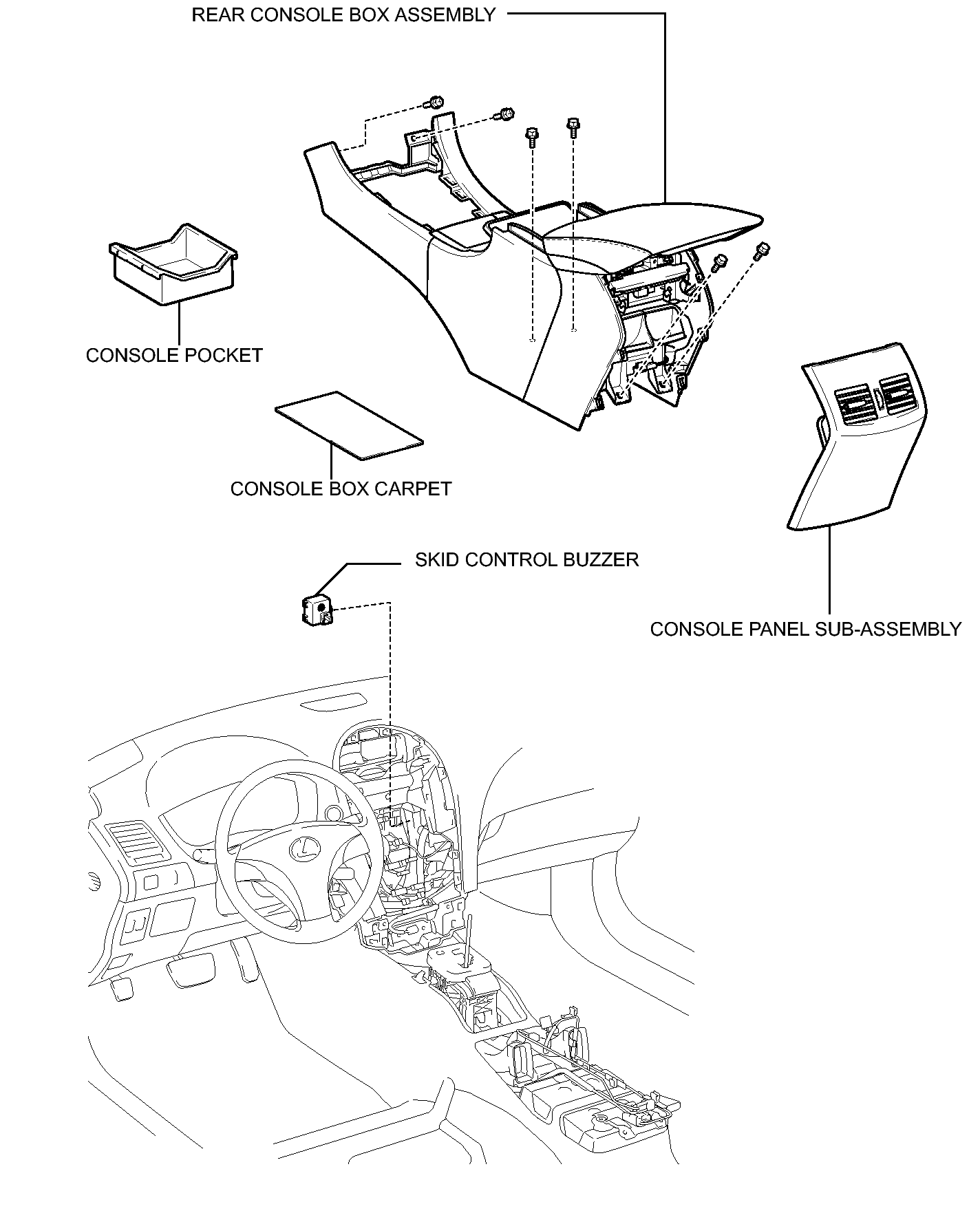

Fig 1: Identifying Skid Control Buzzer Replacement Components (2 Of 2)
GTY111395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
