System Diagram

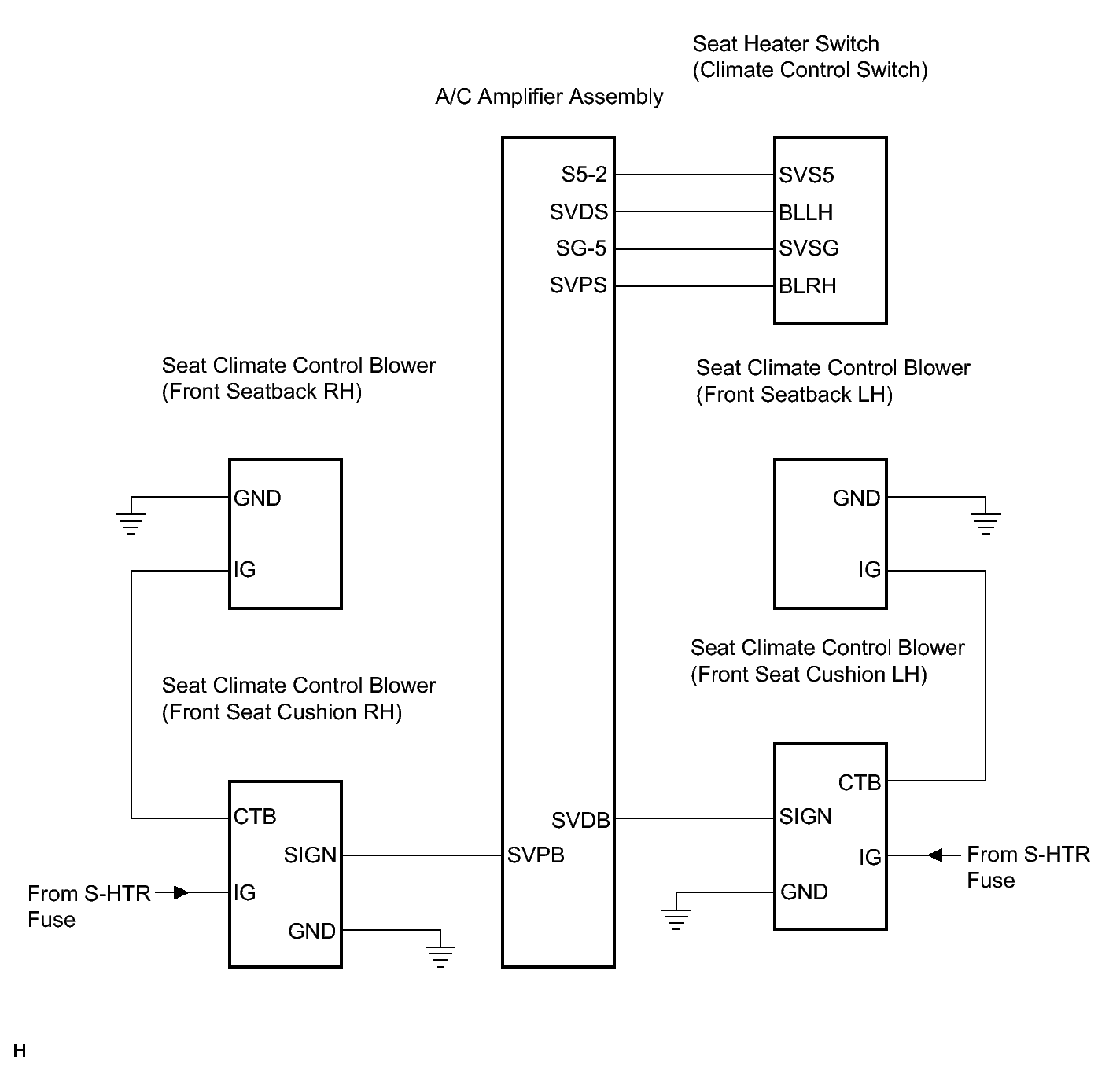

Fig 1: Identifying Climate Control Seat System Diagram

GTY133224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
