Transmission Control Switch Circuit: Wiring Diagram

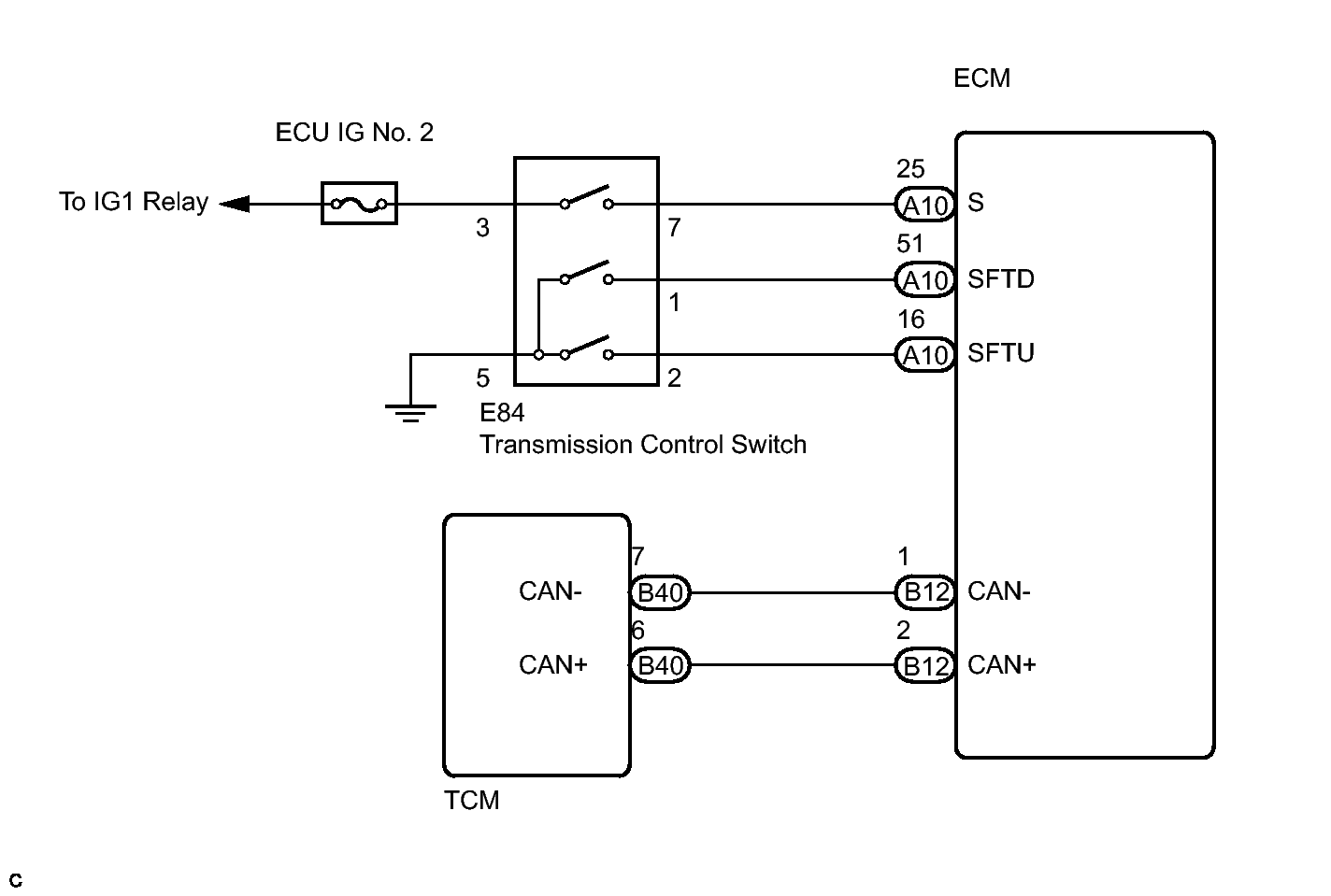

Fig 1: Transmission Control Switch Circuit - Wiring Diagram

GTY112303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
