ECU Power Source Circuit: Procedure

1. Disconnect the TCM connector.

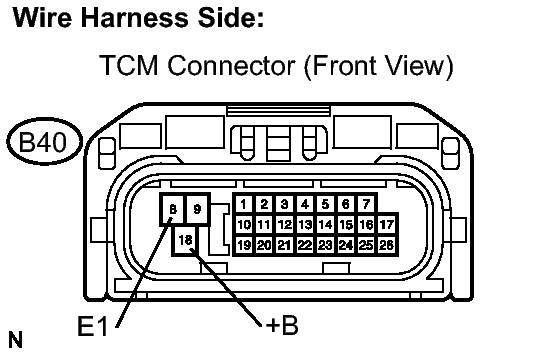

   Fig 1: TCM Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   B40-18 (+B) - B40-8 (E1)	Engine switch on (IG)	9 to 14 V

OK → CHECK FOR INTERMITTENT PROBLEMS

NG: Go to next step

1. Measure the resistance according to the value(s) in the table below.

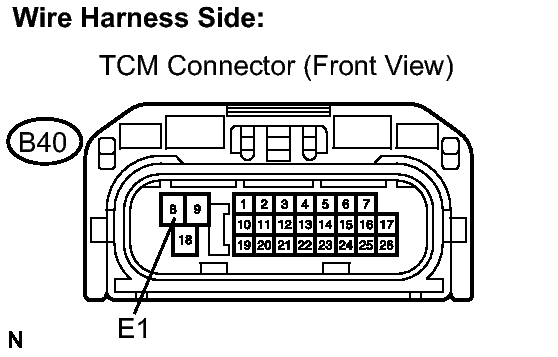

   Fig 2: TCM Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   B40-8 (E1) - Body ground	Always	Below 1 Ω

2. Reconnect the TCM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - BODY GROUND)

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - EFI RELAY)
