DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction: Wiring Diagram

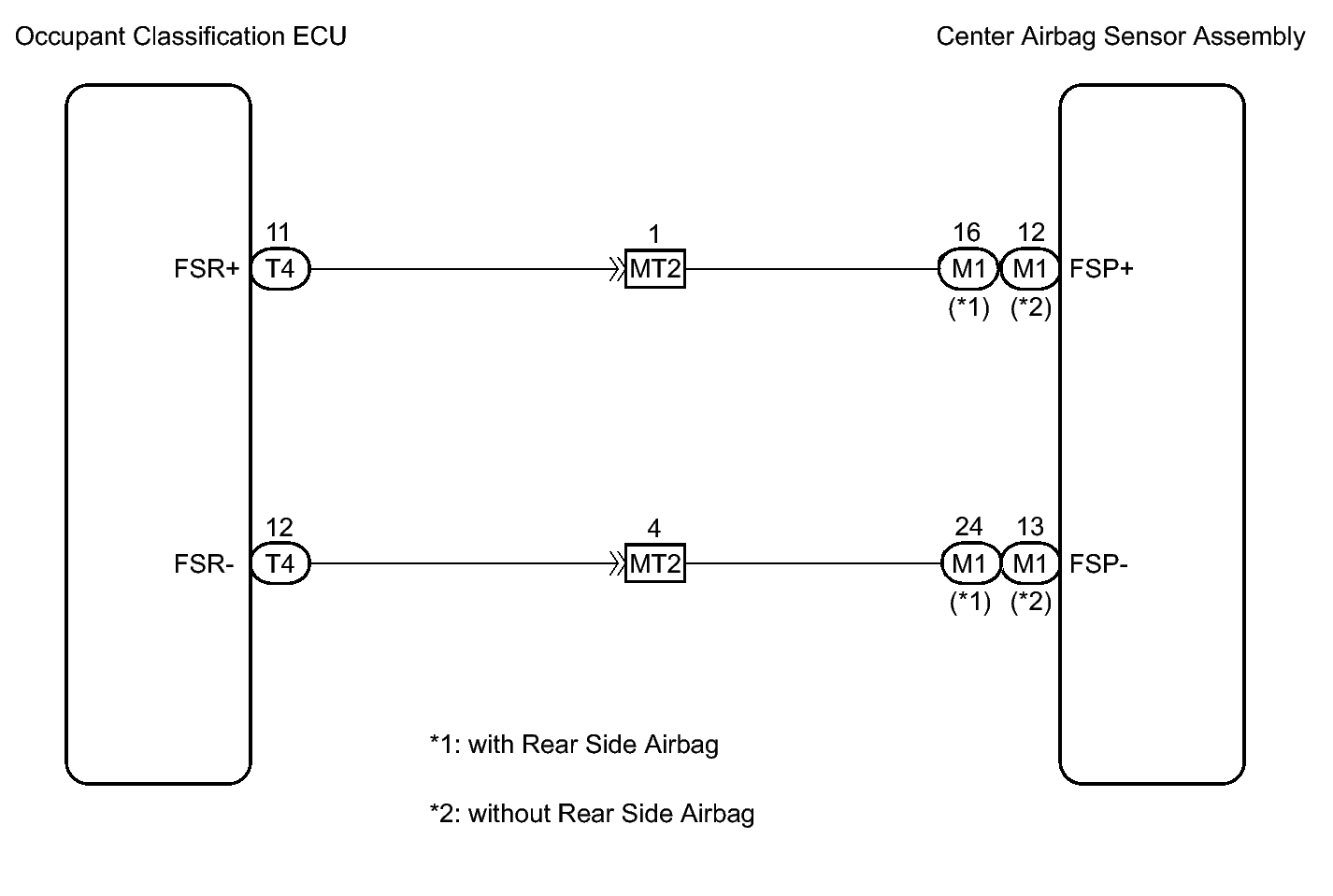

Fig 1: Occupant Classification And Center Airbag Sensor Assembly - Wiring Diagram
GTY113308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
