ECM Power Source Circuit: Wiring Diagram

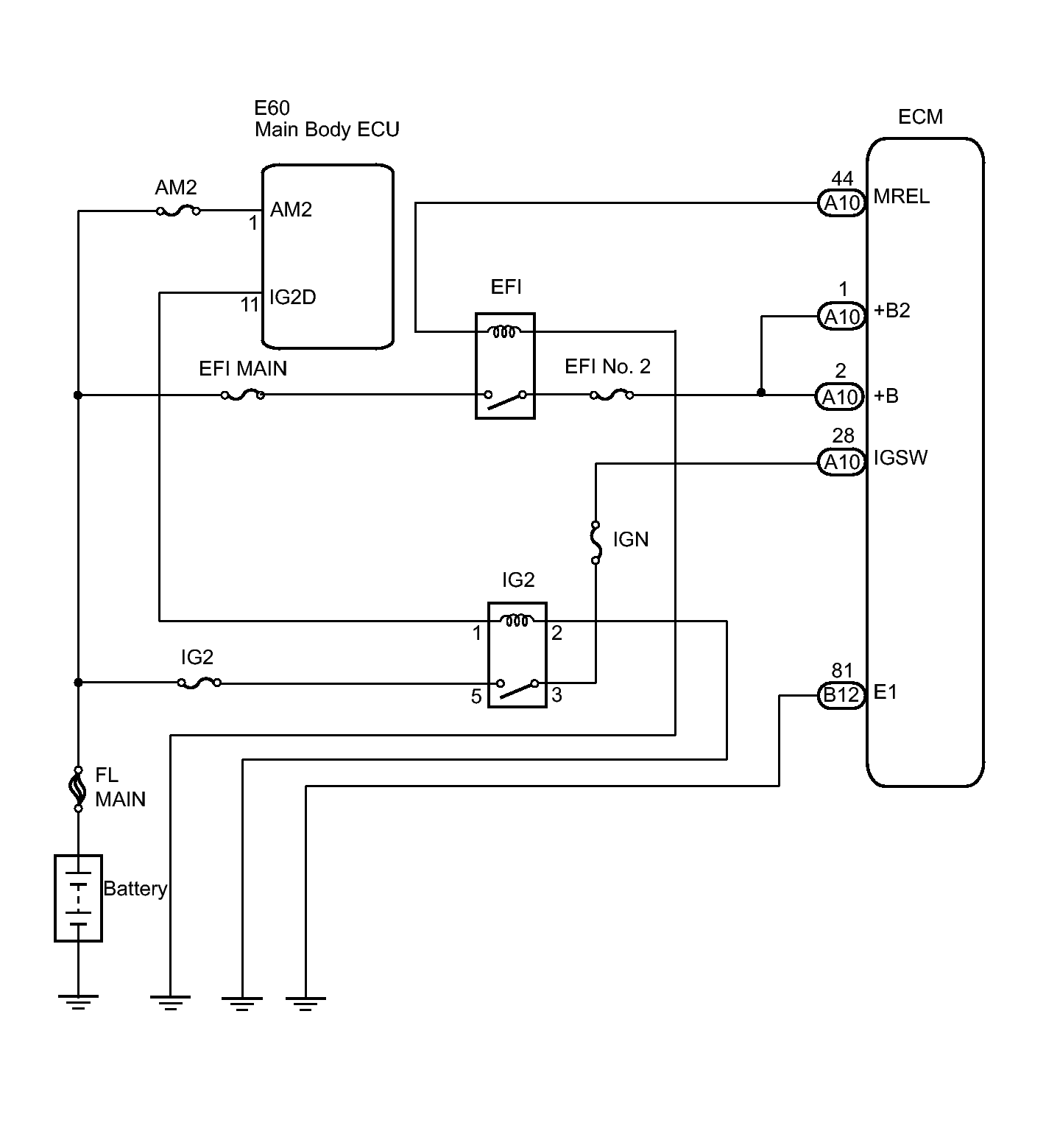

Fig 1: Identifying ECM Power Source Wiring Diagram

GTY147311
