DTC B2289: Key Collation Waiting Time Over: Procedure

1. Delete the DTCs . Refer to DTC CHECK / CLEAR .
2. Check for DTC B2289 (Key collection waiting time over) and B2785 (Communication malfunction between ECUs connected by LIN).

   Result

   Display (DTC output)	Proceed to
   "DTC B2289" only	A
   "DTC B2785" only	B
   No DTC	C

   HINT:

   • If DTC B2785 is output, perform troubleshooting for DTC B2785 first . Refer to DTC B2785: Communication Malfunction between ECUs Connected by LIN .

C → CHECK INTERMITTENT PROBLEMS

B → GO TO DTC B2785

A: Go to next step

1. Disconnect the E13 and DR ECU connectors.

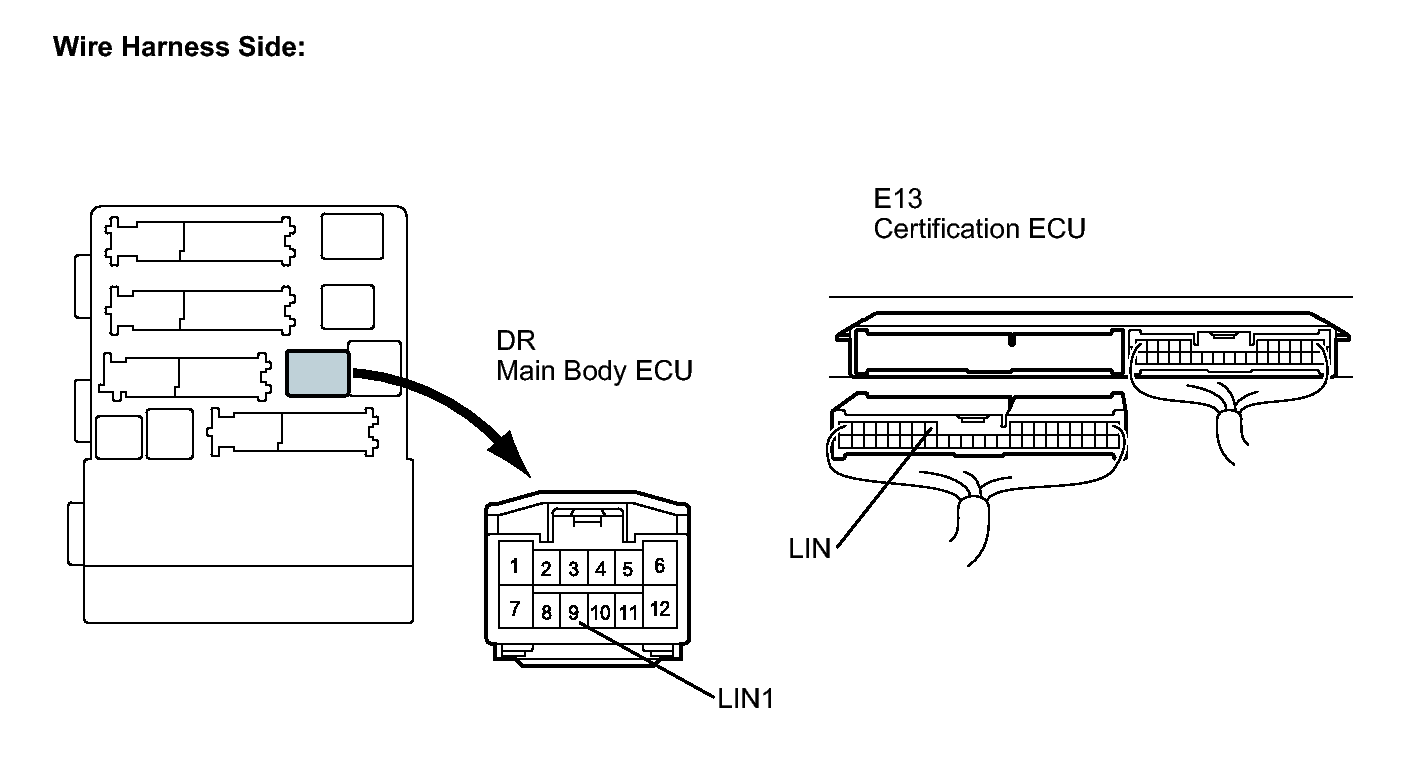

   Fig 1: Identifying Main Body ECU And E13 Certification ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection (Symbols)	Condition	Specified Condition
   DR-9 (LIN1) - E13-10 (LIN)	Always	Below 1 Ω
   DR-9 (LIN1) or E13-10 (LIN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. After replacing the main body ECU with a normally functioning ECU, check that the engine starts.

   OK

   Engine can start normally.

   HINT:

   If the engine does not start, refer to PROBLEM SYMPTOMS TABLE of the smart access system with push-button start (door lock function) (matching for the inside of the cabin cannot be performed).

NG → GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (ENTRY)

OK → END (MAIN BODY ECU DEFECTIVE)
