Clock (w/ LEXUS Navigation System): Notes

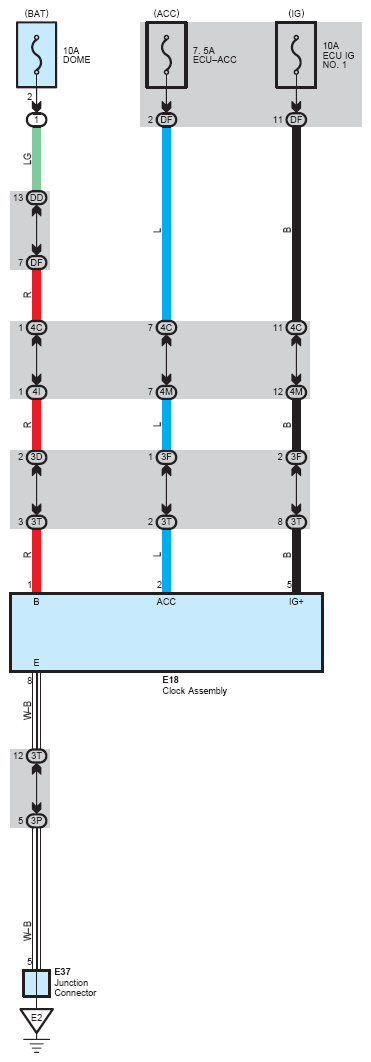

Fig 1: Clock (W/ Lexus Navigation System) - Circuit Diagram

G07625258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
