Entry Lock Switch Circuit: Procedure

1. Remove the outside handle.

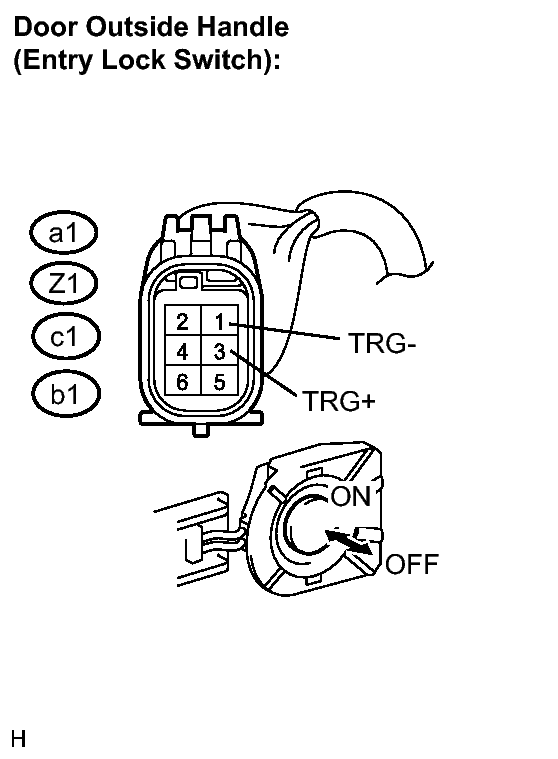

   Fig 1: Identifying Door Outside Handle Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Front LH side

   Front RH side

   Rear LH side

   Rear RH side

   Tester Connection (Symbols)	Condition	Specified Condition
   a1-1 (TRG-) - a1-3 (TRG+)	Lock switch not pushed	10 kΩ or higher
   	Lock switch pushed	Below 1 Ω

   Tester Connection (Symbols)	Condition	Specified Condition
   Z1-1 (TRG-) - Z1-3 (TRG+)	Lock switch not pushed	10 kΩ or higher
   	Lock switch pushed	Below 1 Ω

   Tester Connection (Symbols)	Condition	Specified Condition
   c1-1 (TRG-) - c1-3 (TRG+)	Lock switch not pushed	10 kΩ or higher
   	Lock switch pushed	Below 1 Ω

   Tester Connection (Symbols)	Condition	Specified Condition
   b1-1 (TRG-) - b1-3 (TRG+)	Lock switch not pushed	10 kΩ or higher
   	Lock switch pushed	Below 1 Ω

NG → REPLACE OUTSIDE HANDLE ASSEMBLY

OK: Go to next step

1. Disconnect the E13 and E14 ECU connectors.

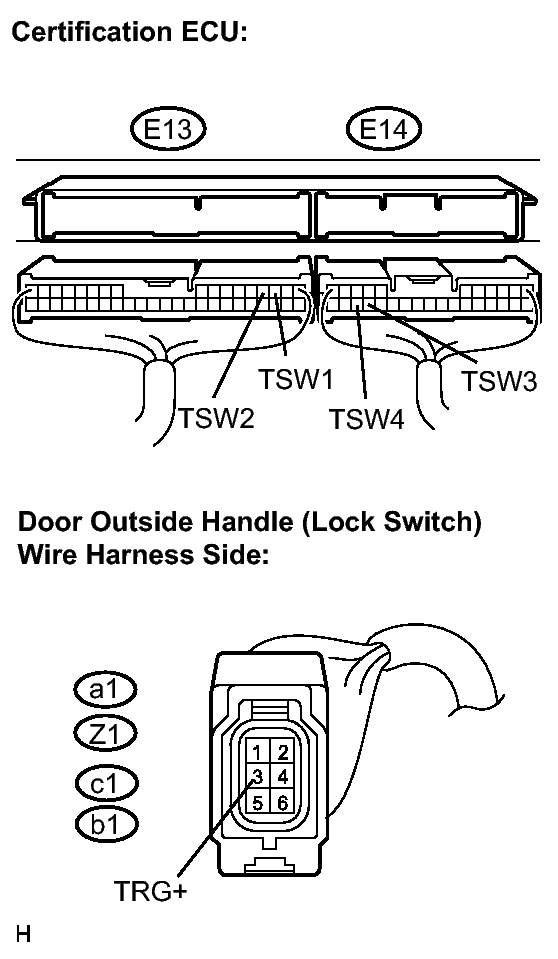

   Fig 2: Identifying E13 And E14 ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Front LH side

   Front RH side

   Rear LH side

   Rear RH side

   Tester Connection (Symbols)	Condition	Specified Condition
   E13-3 (TSW1) - a1-3 (TRG+)	Always	Below 1 Ω
   E13-3 (TSW1) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   E13-4 (TSW2) - Z1-3 (TRG+)	Always	Below 1 Ω
   E13-4 (TSW2) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   E14-25 (TSW3) - c1-3 (TRG+)	Always	Below 1 Ω
   E14-25 (TSW3) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   E14-26 (TSW4) - b1-3 (TRG+)	Always	Below 1 Ω
   E14-26 (TSW4) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the electrical key oscillator connector.

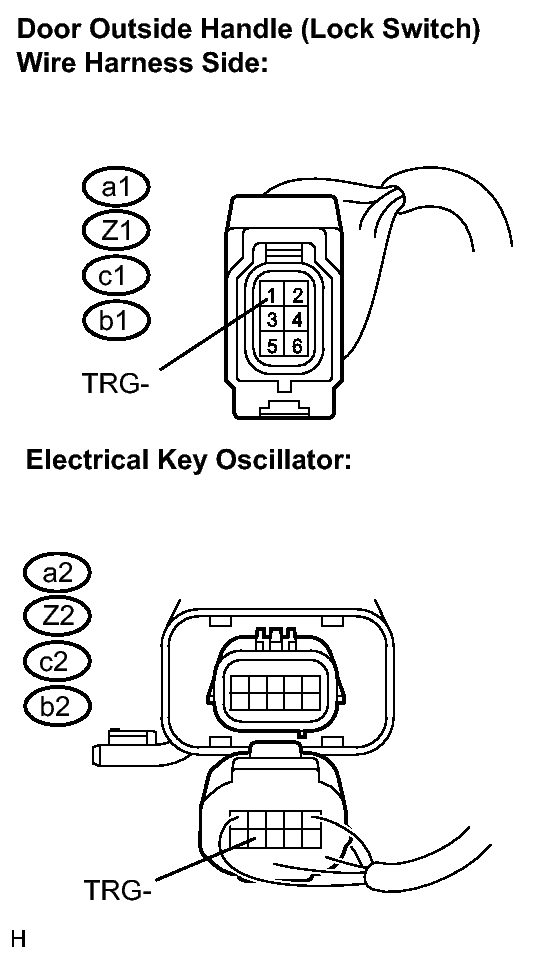

   Fig 3: Identifying Door Outside Handle And Electrical Key Oscillator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Front LH side

   Front RH side

   Rear LH side

   Rear RH side

   Tester Connection (Symbols)	Condition	Specified Condition
   a2-9 (TRG-) - a1-1 (TRG-)	Always	Below 1 Ω
   a2-9 (TRG-) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   Z2-9 (TRG-) - Z1-1 (TRG-)	Always	Below 1 Ω
   Z2-9 (TRG-) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   c2-9 (TRG-) - c1-1 (TRG-)	Always	Below 1 Ω
   c2-9 (TRG-) - Body ground	Always	10 kΩ or higher

   Tester Connection (Symbols)	Condition	Specified Condition
   b2-9 (TRG-) - b1-1 (TRG-)	Always	Below 1 Ω
   b2-9 (TRG-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the electrical key oscillator.
2. Check that the entry LOCK/UNLOCK function operates normally.

   OK

   Entry LOCK/UNLOCK function operates normally.

NG → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK → END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
