Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

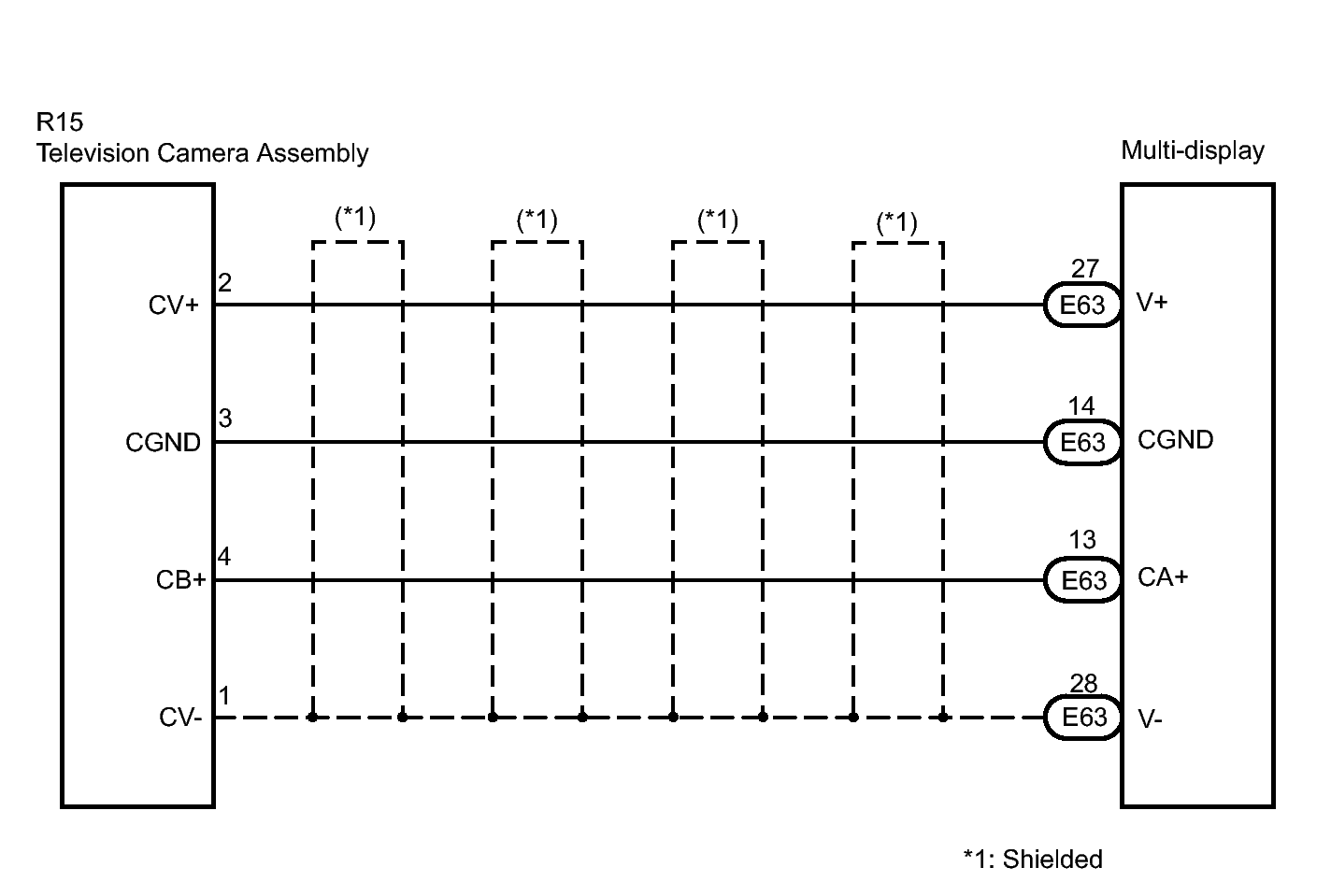

Fig 1: View Of Multi-Display And Television Camera Assembly - Wiring Diagram
GTY136305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
