Vehicle Speed Signal Circuit between Navigation ECU and Multi-Display: Wiring Diagram

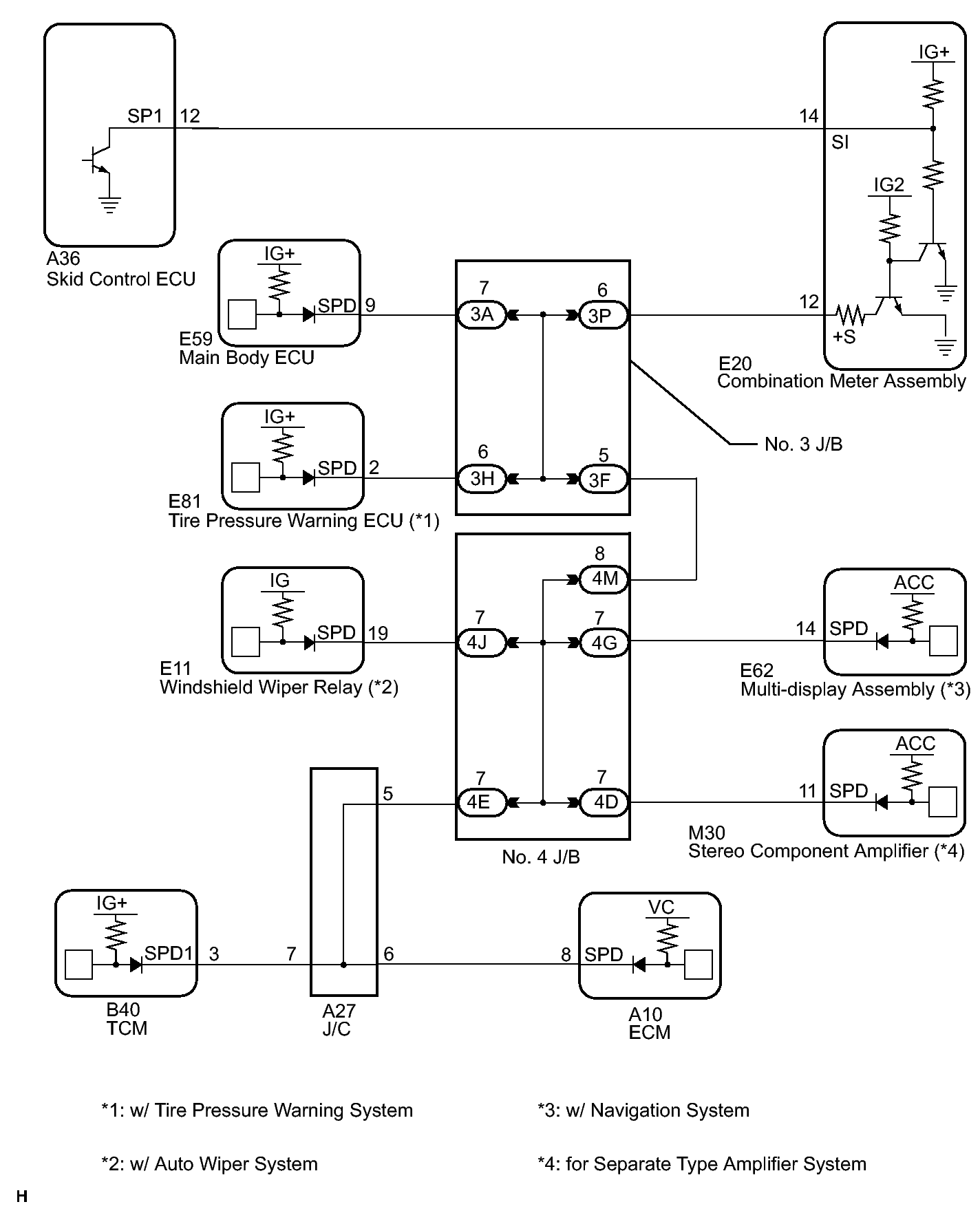

Fig 1: View Of 2GR-FE Speed Signal Wiring Diagram
GTY153309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: View Of Combination Meter To Multi Display Wiring Diagram
GTY122191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
