Multi-Display Power Source Circuit: Wiring Diagram

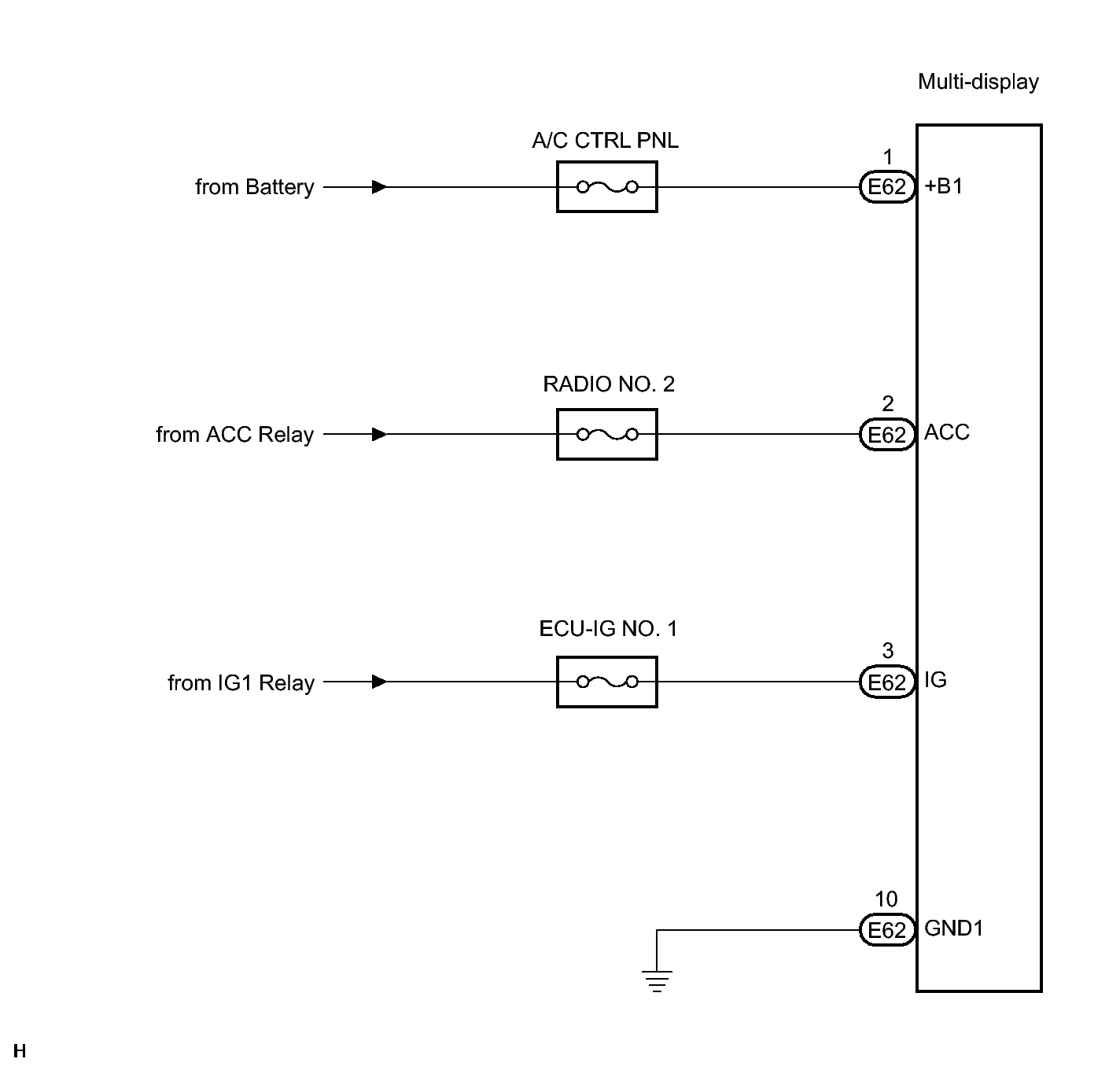

Fig 1: View Of Multi-Display Power Source Circuit Wiring Diagram

GTY128390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
