Multi-Display Power Source Circuit: Procedure

1. Disconnect the multi-display connector E62.

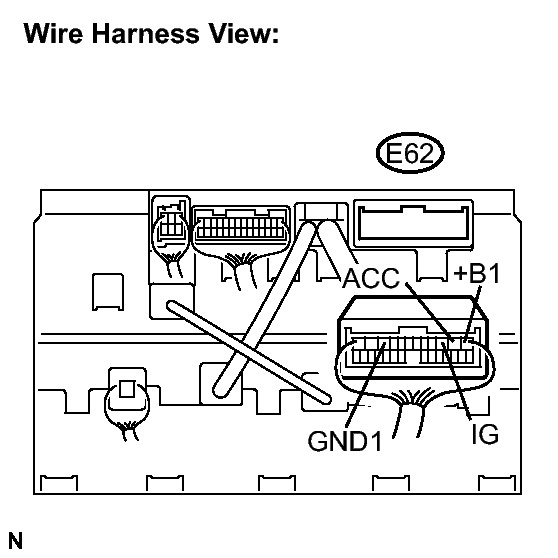

   Fig 1: Identifying E62 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   GND1 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   +B1 - GND1	Always	10 to 14 V
   ACC - GND1	Engine switch on (ACC)	10 to 14 V
   IG - GND1	Engine switch on (IG)	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
