Microphone Circuit Between Overhead Junction Block and Multi-Display: Procedure

1. Disconnect the overhead J/B connector Q2 and multi-display connector E63.

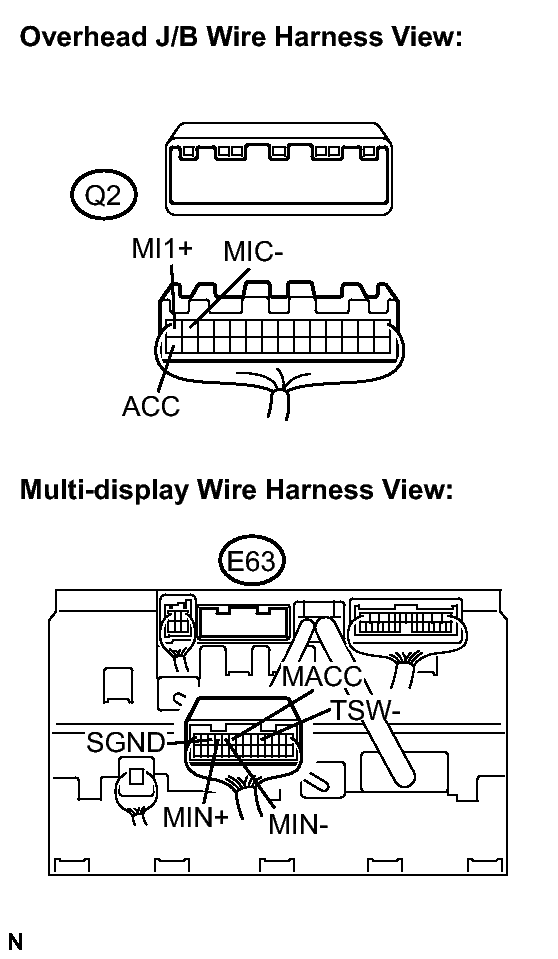

   Fig 1: View Of Q2 Overhead J/B Connector And Multi-Display Connector E63

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   ACC - MACC	Always	Below 1 Ω
   MI1+ - MIN+	Always	Below 1 Ω
   MIC- - MIN-	Always	Below 1 Ω
   TSW- - SGND	Always	Below 1 Ω
   ACC - Body ground	Always	10 kΩ or higher
   MI1+ - Body ground	Always	10 kΩ or higher
   MIC- - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the multi-display connector E63.

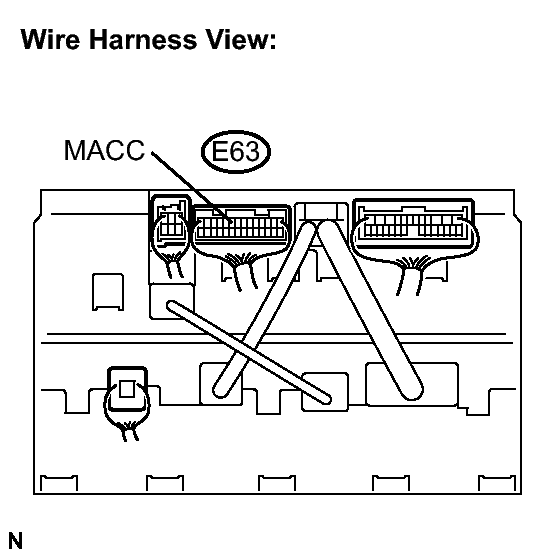

   Fig 2: Identifying Multi-Display Connector E63

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   MACC - Body ground	Engine switch on (ACC)	4 to 6 V

NG → REPLACE MULTI-DISPLAY

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
