Microphone Circuit Between Multi-Display and Navigation ECU: Procedure

1. Disconnect the multi-display connector p1 and navigation ECU connector p3.

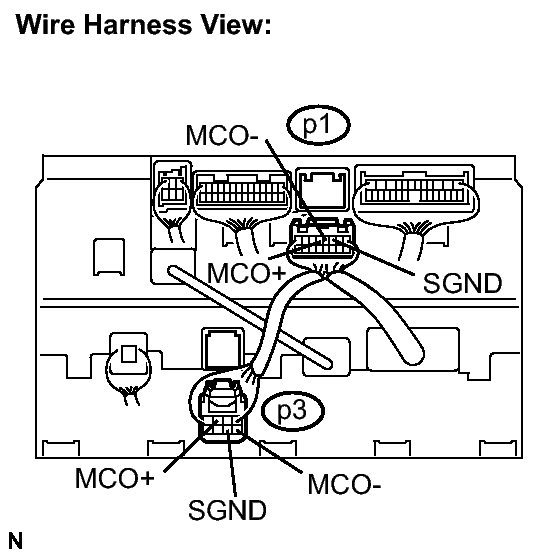

   Fig 1: Identifying Multi-Display Connector P1 And Navigation ECU Connector P3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   MCO+ - MCO+	Always	Below 1 Ω
   MCO- - MCO-	Always	Below 1 Ω
   SGND - SGND	Always	Below 1 Ω
   MCO+ - Body ground	Always	10 kΩ or higher
   MCO- - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
