Map Disc cannot be Inserted: Procedure

1. Check that the map disc is not deformed or cracked.

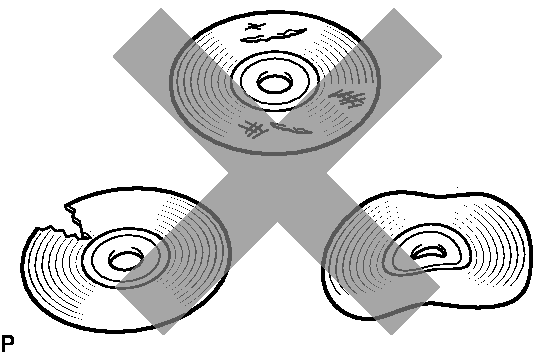

   Fig 1: Identifying Cracked Or Deformed Map Discs

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   No deformations or cracks on the map disc.

NG → REPLACE MAP DISC

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
