DTC 01-DD: Master Reset; DTC 01-E1: Voice Processing Device ON Error: Procedure

  1. CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT

    Refer to Multi-display Power Source Circuit .

    If the power source circuit is operating normally, proceed to the next step.

    NEXT: Go to next step

  2. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connectors.
      Fig 1: Identifying Radio Receiver Connector Terminals
      GTY126197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      ATX+ (E69-5) -
      ATX- (E69-15)
      Always 60 to 80 Ω
      TX+ (E70-9) -
      TX- (E70-10)
      Always 60 to 80 Ω

    NG → REPLACE RADIO RECEIVER

    OK: Go to next step

  3. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
    1. Enter the diagnostic mode.

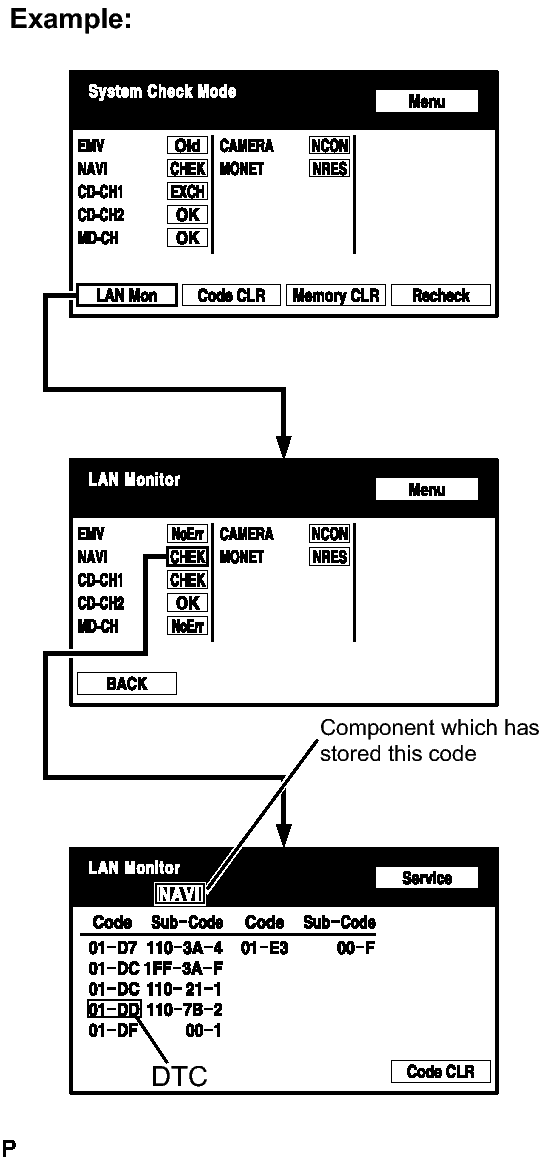

      Fig 2: View Of Diagnostic Tool Display - System Check Mode And LAN Monitor Screen
      GTY151254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component which has stored this code.
      COMPONENT TABLE:

      Display Component
      AUDIO H/U Radio receiver
      DSP-AMP Stereo component amplifier
      NAVI Navigation ECU

      HINT:

      "NAVI" is the component which has stored this code in the example shown in the illustration.

    NEXT: Go to next step

  4. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)

    HINT:

    For details of the connectors, refer to TERMINALS OF ECU .

    1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
      1. Disconnect all connectors between the multi-display and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.

        OK

        There is no open or short circuit.

        Fig 3: View Of AVC-LAN Wiring Diagram
        GTY142247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. REPLACE MULTI-DISPLAY
    1. Replace the multi-display with a normal one and check if the same problem occurs again.

      OK

      Same problem does not occur.

    NG → REPLACE COMPONENT WHICH HAS STORED THIS CODE

    OK → END
