Stereo Component Amplifier Power Source Circuit: Wiring Diagram

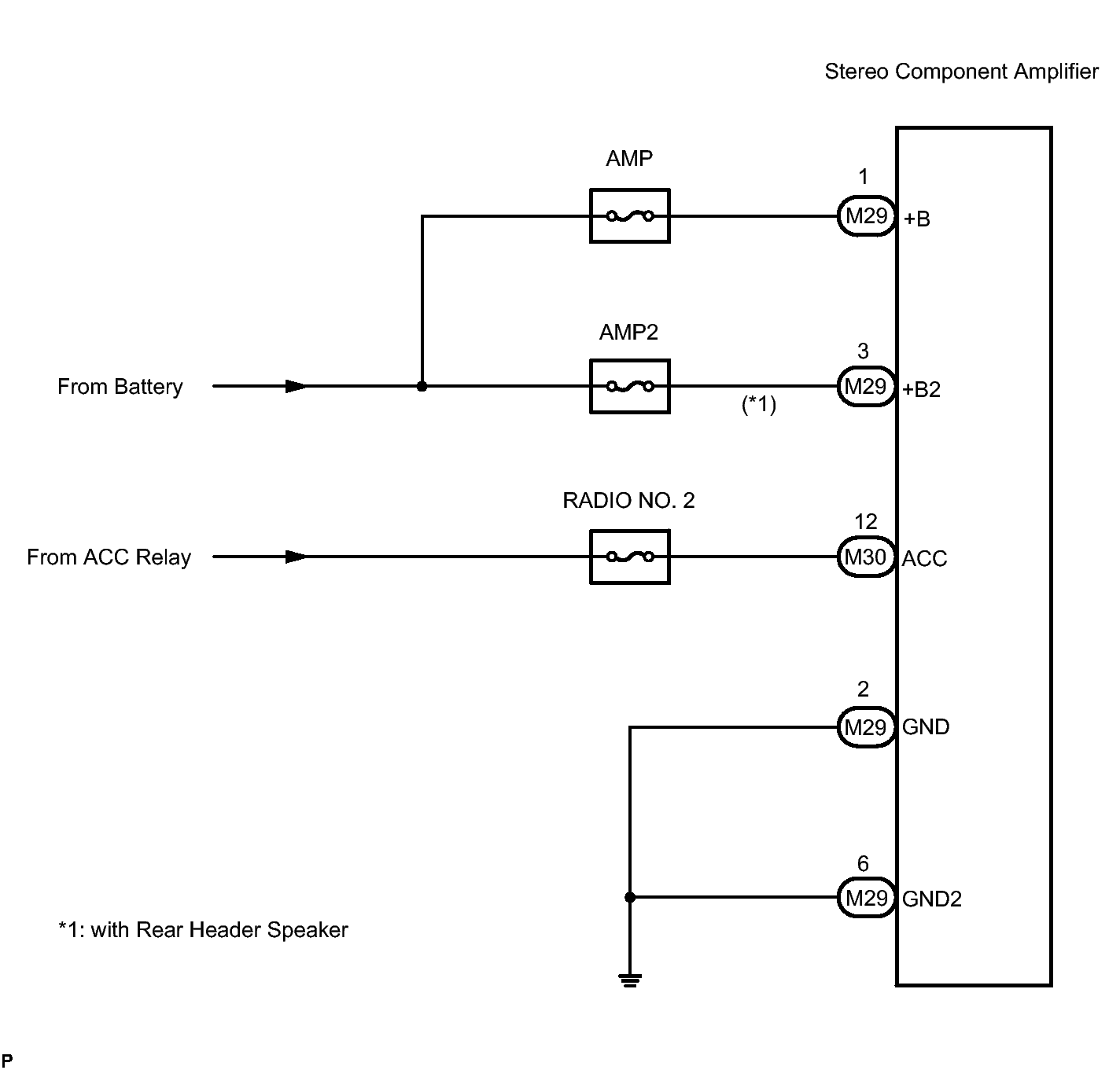

Fig 1: View Of Stereo Component Amplifier Power Source Circuit Wiring Diagram

GTY139728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
