Steering Pad Switch Circuit: Wiring Diagram

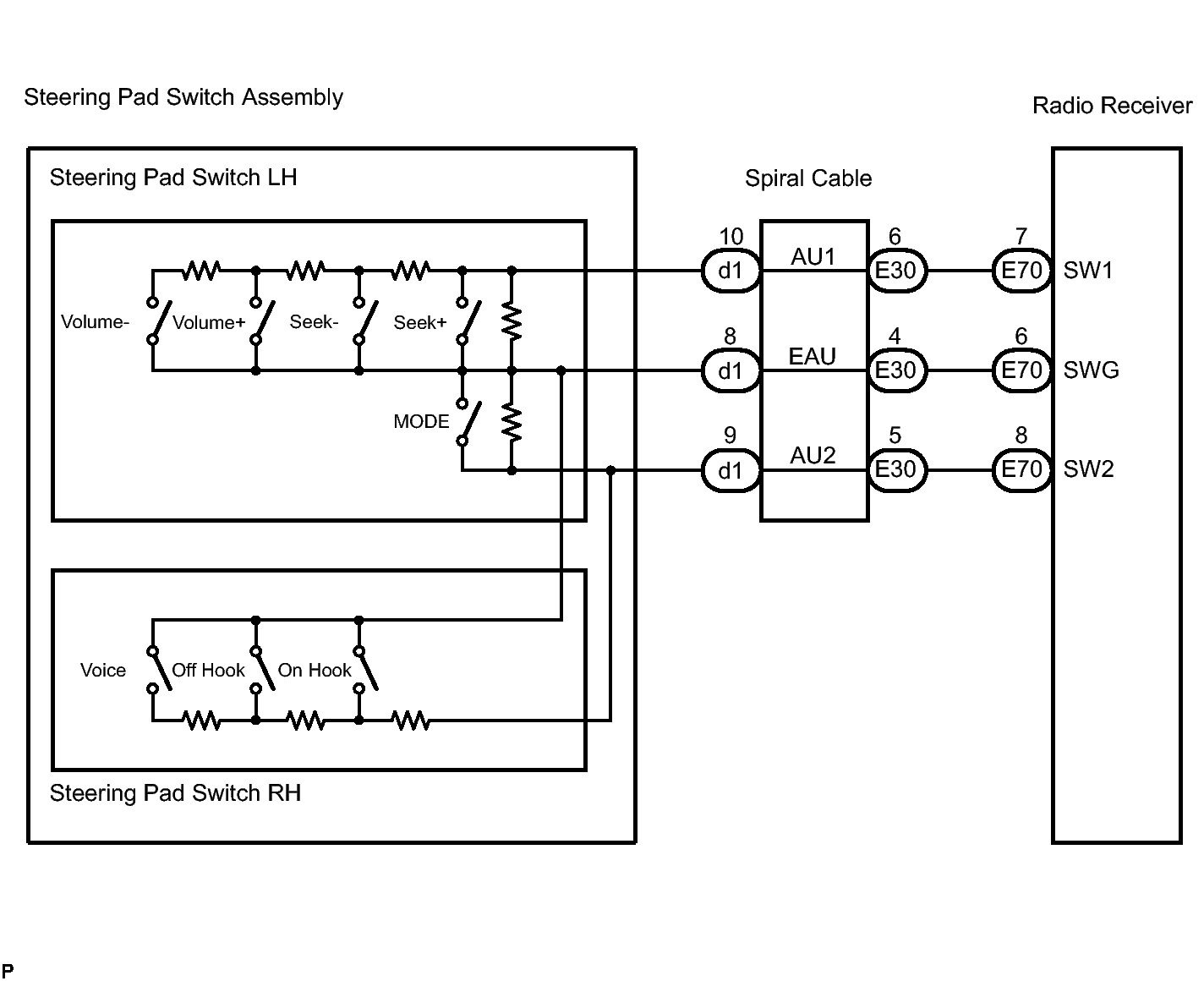

Fig 1: View Of Steering Pad Switch Wiring Diagram

GTY142683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
