Radio Receiver Power Source Circuit: Wiring Diagram

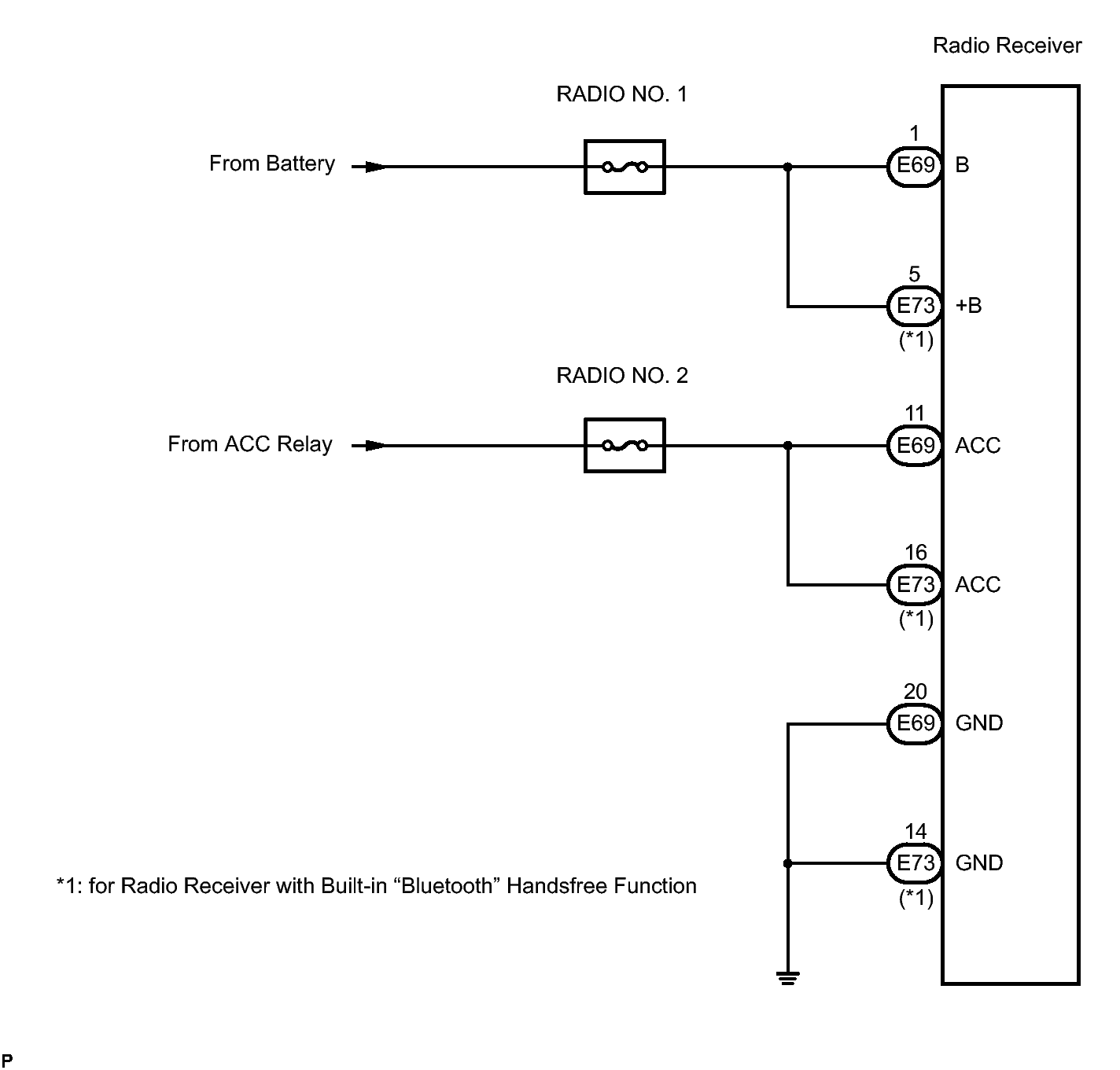

Fig 1: View Of Radio Receiver Power Source Wiring Diagram

GTY151839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
