Cellular Phone Voice Circuit Between Radio Receiver and Stereo Component Amplifier: Procedure

  1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the radio receiver connector E70 and stereo component amplifier connector M30.

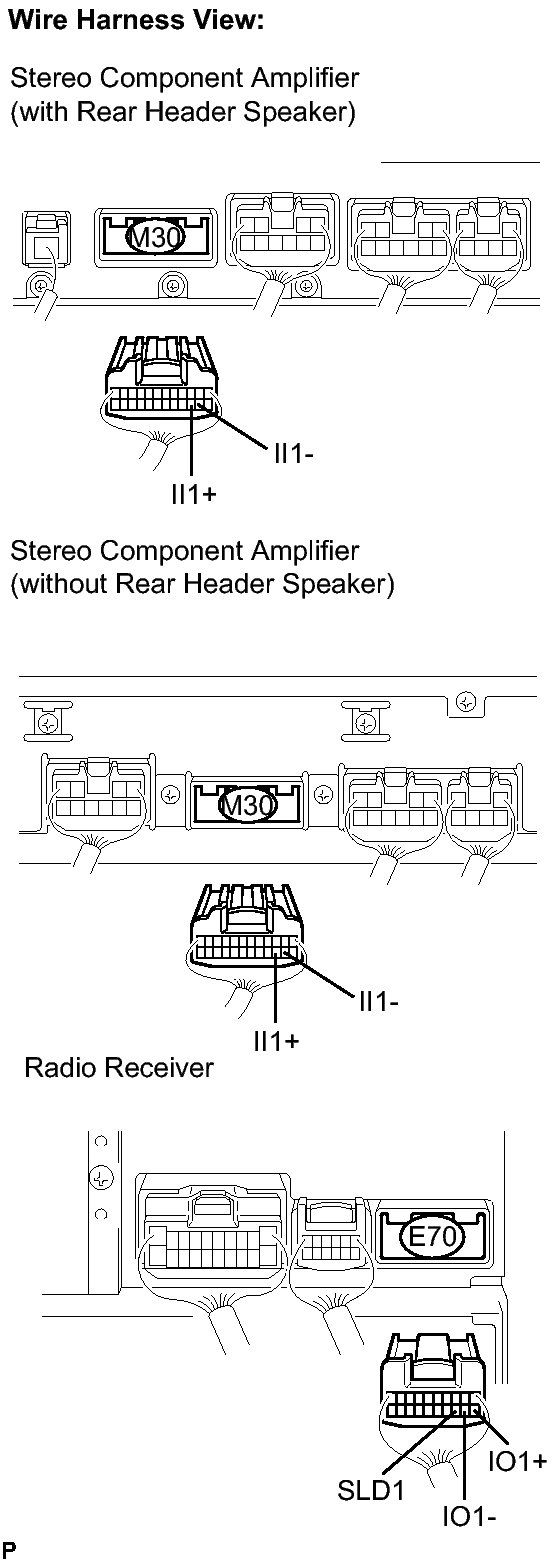

      Fig 1: Identifying Radio Receiver Connector E70 And Stereo Component Amplifier Connector M30
      GTY152283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester connection Condition Specified condition
      IO1+ - II1+ Always Below 1 Ω
      IO1- - II1- Always Below 1 Ω
      IO1+ - Body ground Always 10 kΩ or higher
      IO1- - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
