Bluetooth Handsfree Module Communication Error: Procedure

1. Enter the diagnostic mode.

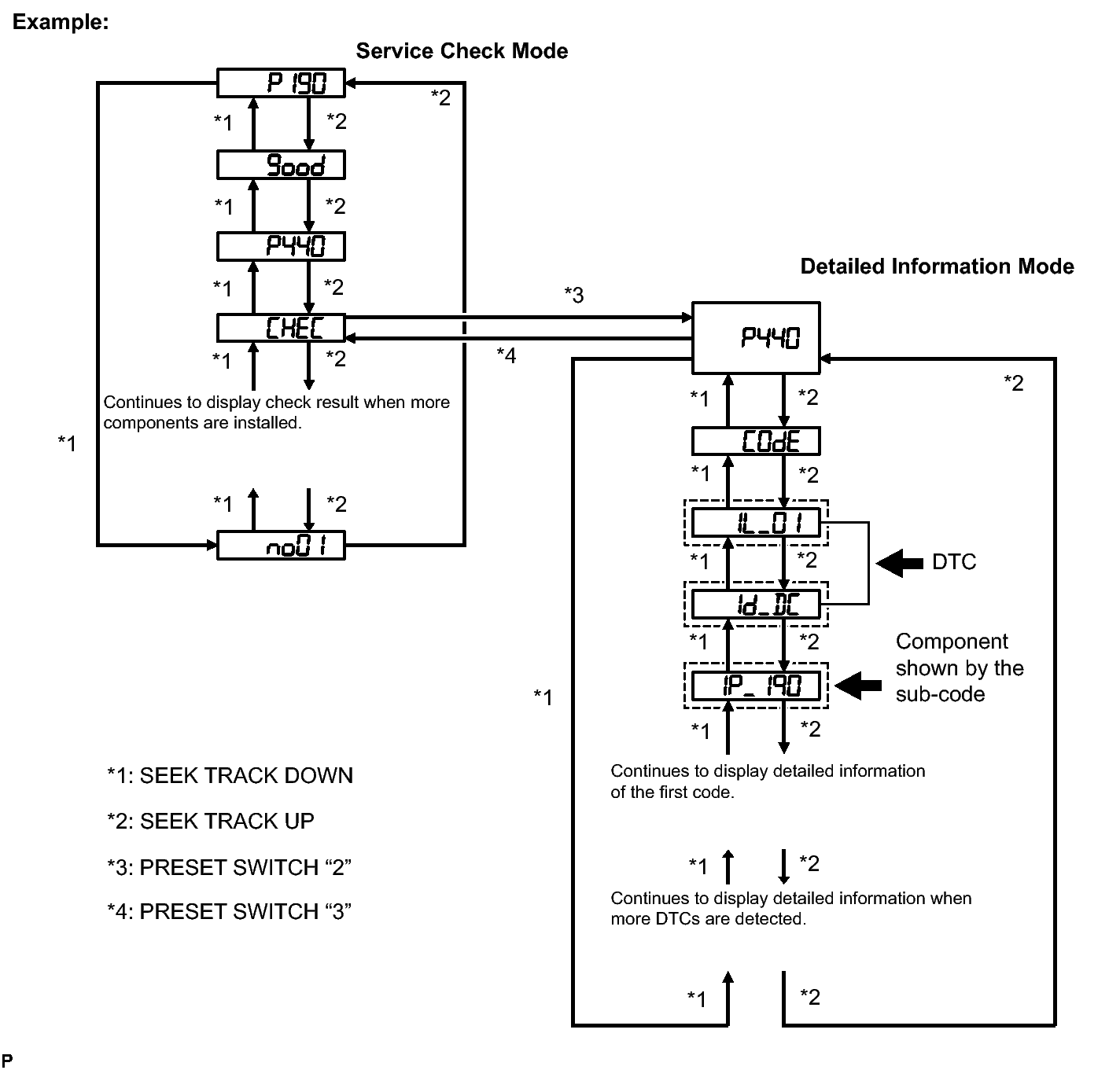

   Fig 1: View Of Service Check Mode And Detailed Information Mode Flow Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press the preset switch "3" to change to "Detailed Information Mode".
3. Identify the component shown by the sub-code.

   HINT:

   • "190 (radio receiver)" is the component shown by the sub-code in the example shown in the illustration.
   • For details of the DTC display, refer to DTC CHECK / CLEAR .

NEXT: Go to next step

1. Select the component shown by sub-code.

   HINT:

   The "Bluetooth" handsfree module is built into the radio receiver. If there is a problem between the "Bluetooth" handsfree module and radio receiver, replace the radio receiver.

   Component Table:

   Component	Proceed to
   Radio Receiver (190)	A
   Except Radio Receiver	B

A → REPLACE RADIO RECEIVER

B: Go to next step

1. Inspect the power source circuit of the component shown by the sub-code.

   If the power source circuit is operating normally, proceed to the next step.

   COMPONENT TABLE:



   Component	Proceed to
   Stereo component amplifier (440)	Refer to Stereo Component Amplifier Power Source Circuit

NEXT: Go to next step

1. Disconnect the radio receiver connector.

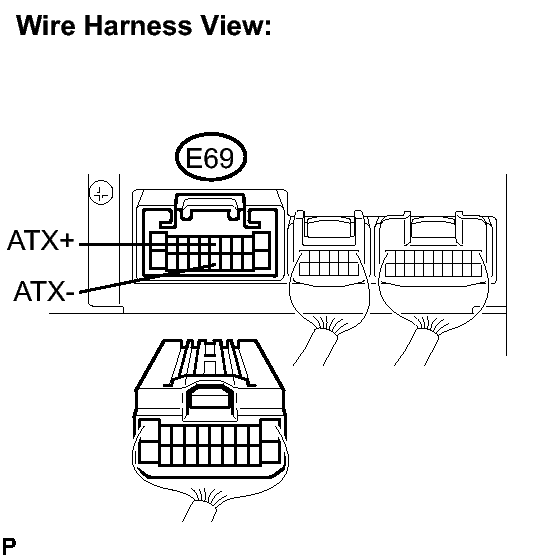

   Fig 2: Identifying Radio Receiver Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester connection	Condition	Specified condition
   ATX+ (E69-5) - ATX- (E69-15)	Always	60 to 80 Ω

NG → REPLACE RADIO RECEIVER

OK: Go to next step

HINT:

• Start the check from the circuit that is near the component shown by the sub-code first.

• For details of the connectors, refer to the TERMINALS OF ECU .

1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the "Bluetooth" handsfree module and the component shown by the sub-code.
   1. Disconnect all connectors between the "Bluetooth" handsfree module and the component shown by the sub-code.
   2. Check for an open or short in the AVC-LAN circuit between the "Bluetooth" handsfree module and the component shown by the sub-code.

      OK

      There is no open or short circuit.

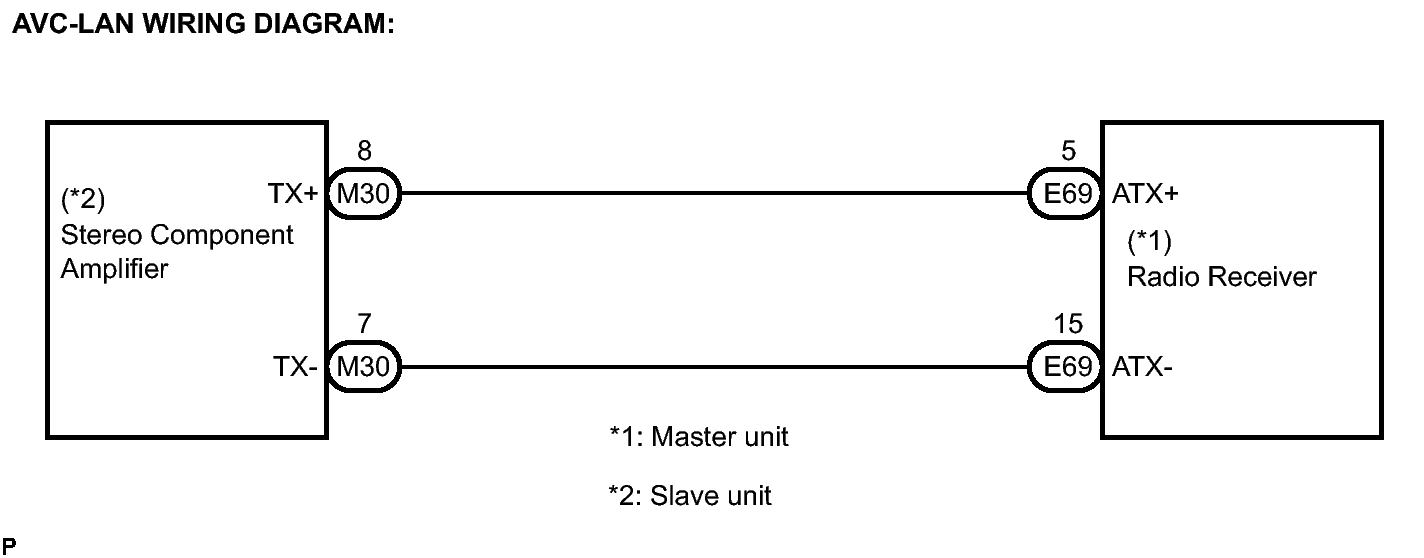

      Fig 3: View Of AVC-LAN Wiring Diagram

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

   OK

   Same problem does not occur.

NG → REPLACE RADIO RECEIVER (BUILT-IN "BLUETOOTH" HANDSFREE MODULE)

OK → END
