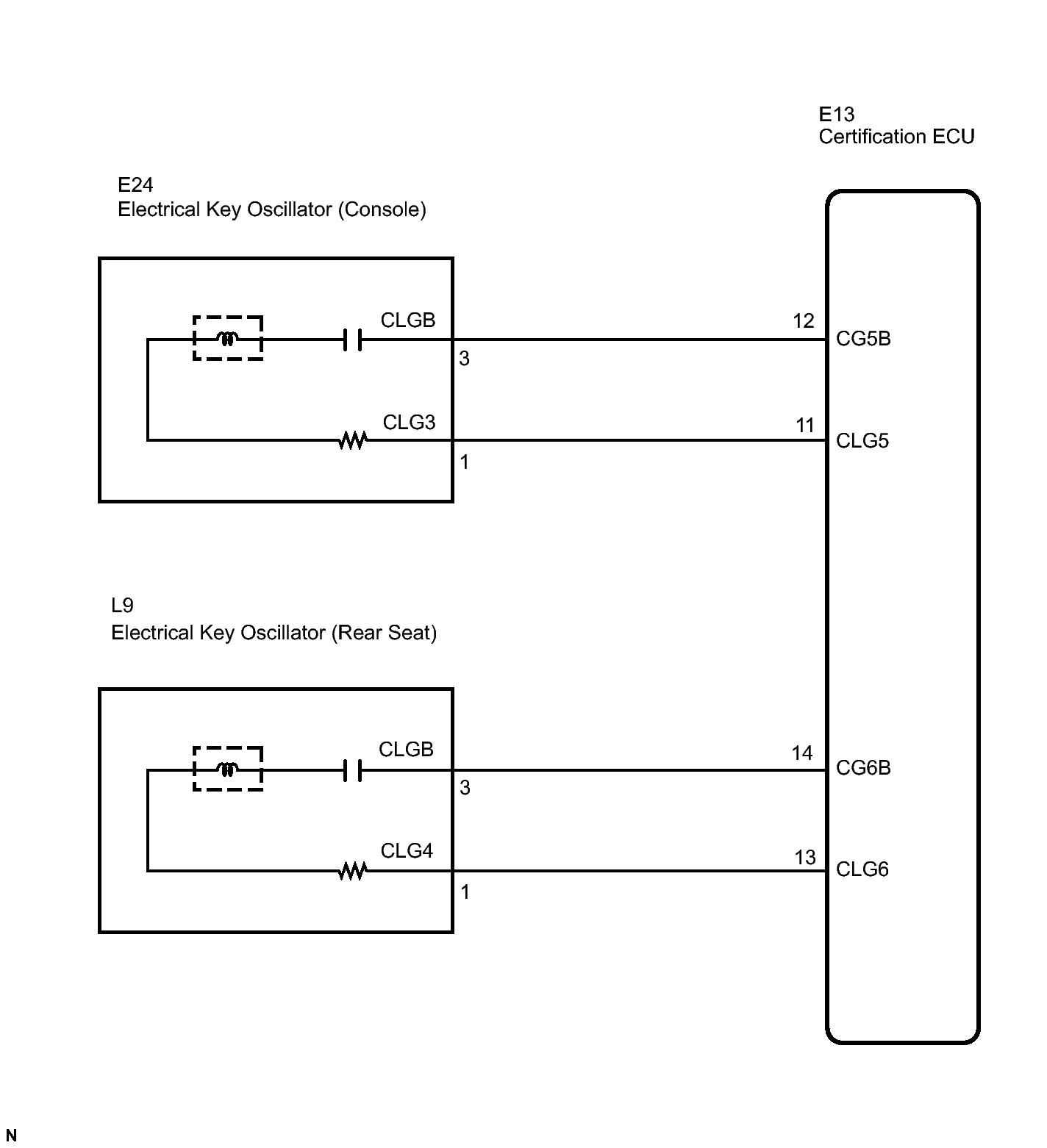

Home >> Lexus >> 2009 >> ES 350 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Smart Access System (Keyless Entry) (Diagnostic Codes & Circuit Tests) >> Smart Access System With Push-Button Start >> Room Oscillator Circuit >> Wiring Diagram
