DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input); DTC P0850: PARK/NEUTRAL Switch Input Circuit: Wiring Diagram

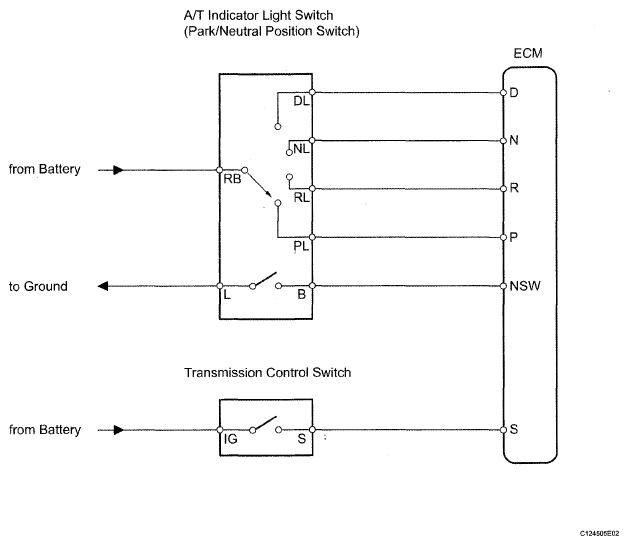

Fig 1: Transmission Range Sensor - Wiring Diagram
G05289540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
