| O3-5 (GND) - Body ground |
W-B - Body ground |
Occupant classification ECU ground line |
Always |
Below 1 Ω |
| O3-6 (PS) - O3-15 (GPS) |
LG-L |
Pressure sensor signal line |
Ignition switch ON |
0 to 5 V |
| O3-7 (VPS) - O3-5 (GND) |
GR - W-B |
Pressure sensor +B line |
Ignition switch ON |
4.75 to 5.25 V |
| O3-8 (GBT) - O3-5 (GND) |
BR - W-B |
Belt tension sensor ground line |
Always |
Below 1 V |
| O3-9 (IG) - O3-5 (GND) |
B - W-B |
Occupant classification ECU +B line |
Ignition switch ON |
10 to 14 V |
| O3-10 (DIA) - O3-5 (GND) |
W - W-B |
Diagnosis (DLC3) |
Ignition switch ON |
Pulse generation |
| X5-11 (FSR+) - O3-12 (FSR-) |
G - R-B |
Center airbag sensor communication line |
Ignition switch ON |
Pulse generation |
| O3-12 (FSR-)-O3-5 (GND) |
G-B - W-B |
Center airbag sensor communication line (-) |
Always |
Below 1 Ω |
| O3-13 (BSW) - O3-14 (BGND) |
R-B |
Passenger side buckle switch line |
Ignition switch ON |
Low: 4 to 7 mA Hi: 12 to 18 mA |
| O3-14 (BGND) - O3-5 (GND) |
B - W-B |
Passenger side buckle switch ground line |
Always |
Below 1 Ω |
| O3-15 (GPS) - O3-5 (GND) |
L - W-B |
Pressure sensor ground line |
Always |
Below 1 Ω |
| O3-16 (BT) - O3-5 (GND) |
P - W-B |
Belt tension sensor signal line |
Ignition switch ON |
0 to 5 V |
| O3-17 (VBT) - O3-5 (GND) |
L-Y - W-B |
Belt tension sensor +B line |
Ignition switch ON |
4.75 to 5.25 V |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

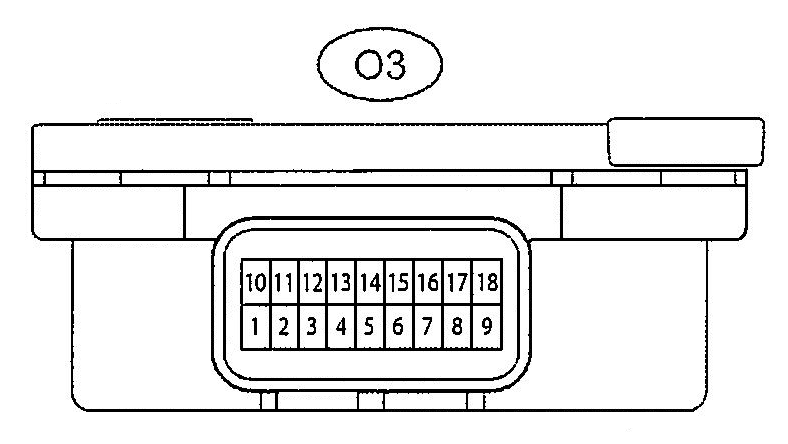

ECU TERMINALS REFERENCE
