Front Door Belt Moulding: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

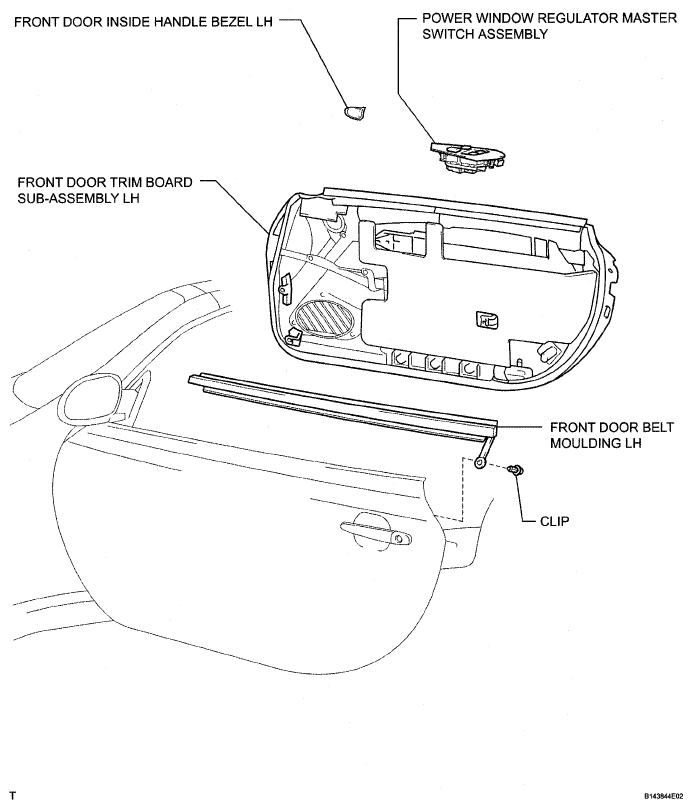

Fig 1: Identifying Front Door Belt Moulding Components
G05293947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
