Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT REAR SIDE MARKER LIGHT ASSEMBLY
    1. Remove the rear side marker light.
    2. Apply battery voltage to the rear side marker light connector and check that the rear side marker illuminates.
      Fig 1: Identifying Rear Side Marker Light Connector Terminals
      G05292685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 2
      Battery negative (-) → Terminal 1
      Rear side marker light illuminates

    NG: REPLACE REAR SIDE MARKER LIGHT ASSEMBLY

    OK: Go to Next step

  2. CHECK WIRE HARNESS (ECU - BATTERY)
    1. Disconnect the 6L junction block connector.
      Fig 2: Identifying 6L Junction Block Connector
      G05292686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      6L-1 (TAIL2) - Body ground 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next step

  3. CHECK WIRE HARNESS (LIGHT - ECU AND BODY GROUND)
    1. Disconnect the R8*1 or R9*2 light connector.

      HINT:

      *1: LH

      *2: RH

    2. Disconnect the L23 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

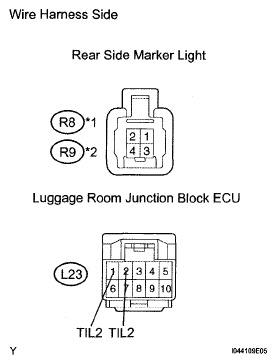

      Fig 3: Identifying Rear Side Marker Light And Luggage Room Junction Block ECU Connector Terminals
      G05292687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance:

      LH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      R8-2 - L23-2 (TIL2) Below 1 Ω
      R8-1 - Body ground Below 1 Ω
      R8-2 - Body ground 10 kΩ or higher

      RH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      R9-2 - L23-1 (TIL2) Below 1 Ω
      R9-1 - Body ground Below 1 Ω
      R9-2 - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
