Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT COURTESY LIGHT ASSEMBLY
    Fig 1: Identifying Front Door Courtesy Light Connector Terminals
    G05292648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the door courtesy light.
    2. Apply battery voltage to the door courtesy light connector and check that the door courtesy light illuminates.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Terminal 2
      Door courtesy light illuminates

    NG: FRONT COURTESY LIGHT ASSEMBLY

    OK: Go to Next step

  2. CHECK WIRE HARNESS (ECU - LIGHT)
    1. Check the wire harness between the driver door ECU and door courtesy light LH.
      1. Disconnect the D17 ECU connector.
      2. Disconnect the D6 light connector.
      3. Measure the resistance of the wire harness side connectors.

        Standard resistance

        RESISTANCE SPECIFICATION

        Measurement Condition Specified Condition
        D17-18 (CYL) - D6-2 Below 1 Ω
        D17-7 (CYLB) - D6-1 Below 1 Ω
        D17-18 (CYL) - Body ground 10 kΩ or higher
        D17-7 (CYLB) - Body ground 10 kΩ or higher

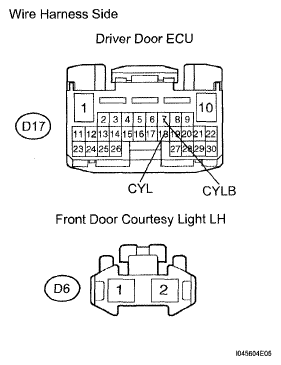

        Fig 2: Identifying Driver Door ECU And Front Door Courtesy Light Connector Terminals
        G05292649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the wire harness between the passenger door ECU and door courtesy light RH.

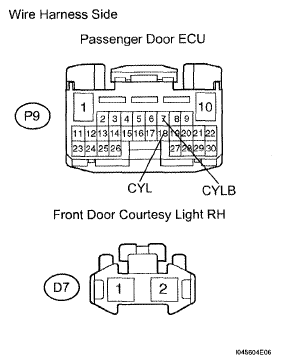

      Fig 3: Identifying Passenger Door ECU And Front Door Courtesy Light Connector Terminals
      G05292650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the P9 ECU connector.
      2. Disconnect the D7 light connector.
      3. Measure the resistance of the wire harness side connectors.

        Standard resistance

        RESISTANCE SPECIFICATION

        Measurement Condition Specified Condition
        P9-18 (CYL) - D7-2 Below 1 Ω
        P9-7 (CYLB) - D7-1 Below 1 Ω
        P9-18 (CYL) - Body ground 10 kΩ or higher
        P9-7 (CYLB) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
