Inspection Procedure
HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the undersurface of the seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.
- CHECK FOR DTC
- Turn the ignition switch ON.
- Clear the DTCs stored in the occupant classification ECU (see DTC CHECK / CLEAR ).
- Clear the DTCs stored in the center airbag sensor (see ON-VEHICLE INSPECTION ).
- Turn the ignition switch OFF.
- Turn the ignition switch ON.
- Check for the DTCs (see DTC CHECK / CLEAR
).
OK:
DTC B1771 is not output.
HINT:
Codes other than B1771 may be output at this time, but they are not related to this check.
OK: USE SIMULATION METHOD TO CHECK (See DIAGNOSIS SYSTEM )
NG: Go to next step
- CHECK CONNECTION OF CONNECTOR
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the occupant classification ECU and the front seat inner belt RH.
OK:
Connectors are properly connected.
NG: CONNECT CONNECTORS PROPERLY
OK: Go to next step
- CHECK CONNECTOR
- Disconnect the connectors from the occupant classification ECU and front seat inner belt RH.
- Check that the connectors (on the center airbag sensor side and front seat inner belt RH) are not damaged.
OK:
Connectors are not deformed or damaged.
HINT:
If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.
NG: REPAIR OR REPLACE FRONT SEAT WIRE RH
OK: Go to next step

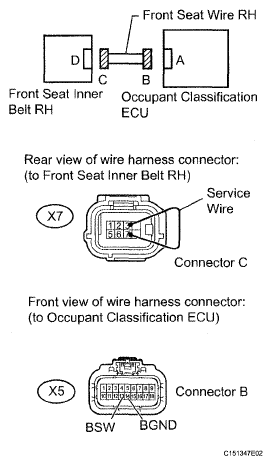

- CHECK FRONT SEAT WIRE RH
- Connect the negative (-) terminal cable to the battery.
- Turn the ignition switch ON.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester connection Switch Condition Specified condition X5-13 (BSW) - Body ground Ignition switch ON Below 1 V X5-14 (BGND) - Body ground - Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Using a service wire, connect terminals 3 and 7 of connector C.NOTE: Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition X5-13 (BSW) - X5-14 (BGND) Always Below 1 Ω - Disconnect the service wire from connector C.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition X5-13 (BSW) - Body ground Always 1 MΩ or higher XS-14 (BGND) - Body ground X5-13 (BSW)-X5-14 (BGND)
NG: REPAIR OR REPLACE FRONT SEAT WIRE RH
OK: Go to next step
- CHECK FOR DTC
- Connect the connectors to the occupant classification ECU and the front seat inner belt assembly RH.
- Connect the negative (-) terminal cable to the battery.
- Turn the ignition switch ON.
- Clear the DTCs stored in the occupant classification ECU (see DTC CHECK / CLEAR ).
- Clear the DTCs stored in the center airbag sensor (see ON-VEHICLE INSPECTION )
- Turn the ignition switch OFF.
- Turn the ignition switch ON.
- Check for the DTCs (see DTC CHECK / CLEAR
).
OK:
DTC B1771 is not output.
HINT:
Codes other than B1771 may be output at this time, but they are not related to this check.
OK: USE SIMULATION METHOD TO CHECK (See DIAGNOSIS SYSTEM )
NG: Go to next step
- REPLACE FRONT SEAT INNER BELT ASSEMBLY RH (PASSENGER SIDE BUCKLE SWITCH)
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Replace the front seat inner belt RH (see
REMOVAL
).
HINT:
(d) Perform the inspection using parts from a normal vehicle if possible.
- Connect the negative (-) terminal cable to the battery.
- Turn the ignition switch ON.
- Clear the DTCs stored in the occupant classification ECU (see DTC CHECK / CLEAR ).
- Clear the DTCs stored in the center airbag sensor (see DTC CHECK / CLEAR )
- Turn the ignition switch OFF.
- Turn the ignition switch ON.
- Check for the DTCs (see DTC CHECK / CLEAR
).
OK:
DTC B1771 is not output.
HINT:
Codes other than B1771 may be output at this time, but they are not related to this check.
OK: END
NG: Go to next step
- REPLACE OCCUPANT CLASSIFICATION ECU
- Connect the intelligent tester (with CAN VIM) to the DLC3.
- Turn the ignition switch ON.
- Using the intelligent tester, save the ECU data from the ECU which has been installed on the vehicle (see REGISTRATION ).
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Replace the occupant classification ECU (see REMOVAL ).
- Connect the negative (-) terminal cable to the battery.
- Turn the ignition switch ON.
- Using the intelligent tester, load the previous ECU data stored into the new ECU (see REGISTRATION ).
- Turn the Ignition switch OFF.
- Turn the ignition switch ON.
- Clear the DTCs stored in the memory (see DTC CHECK / CLEAR
).
HINT:
If DTC is not cleared at this time, past DTC will remain.
- PERFORM SENSITIVITY CHECK
- Perform the sensitivity check (see INITIALIZATION ).
NEXT: END
