TANSPONDER Key Ecu: Components

Fig 1: Identifying Transponder Key ECU Components (1 Of 2)
G00468349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

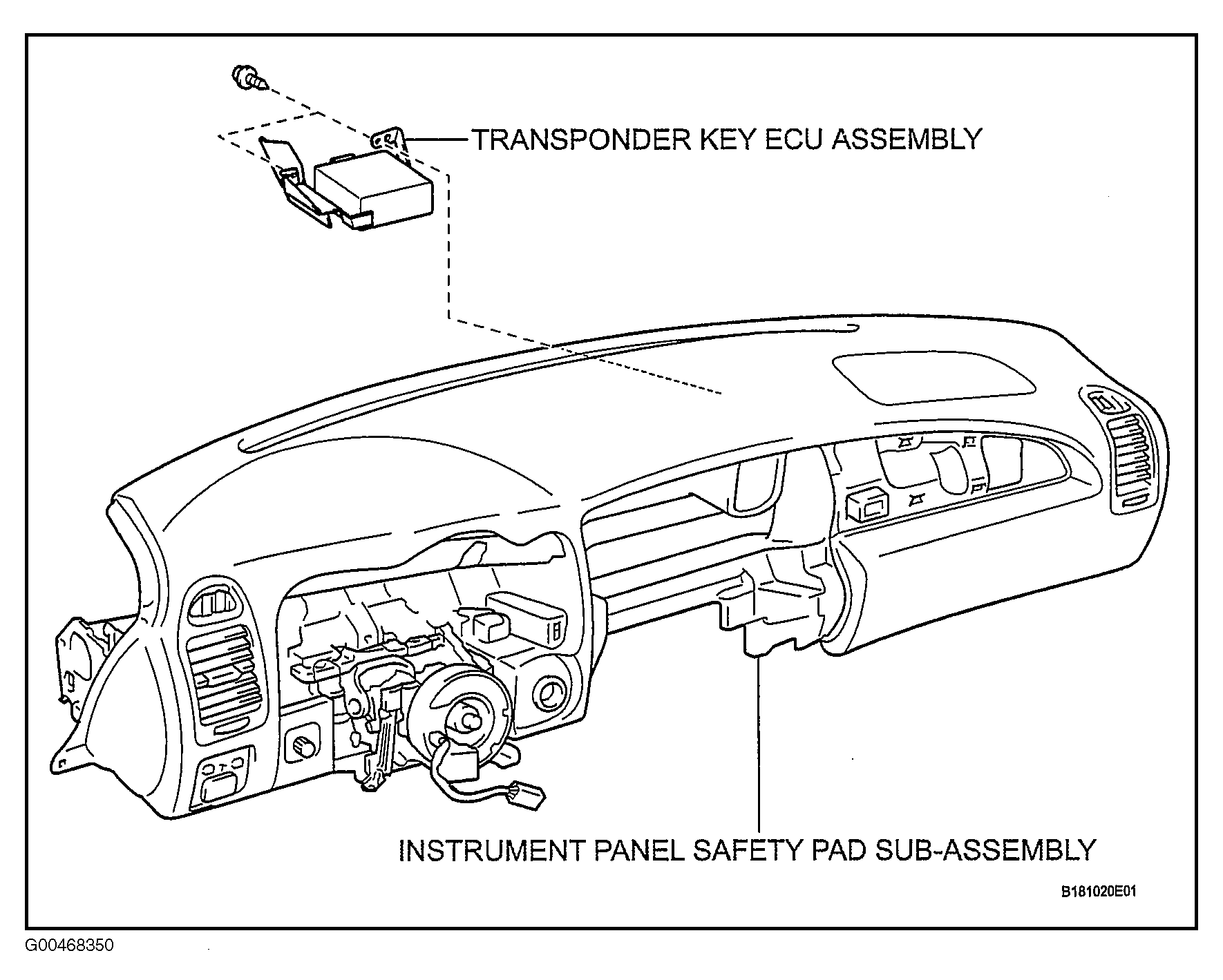

Fig 2: Identifying Transponder Key ECU Components (2 Of 2)
G00468350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
