DTC B1271 Combination Meter ECU Communication Stop: Wiring Diagram

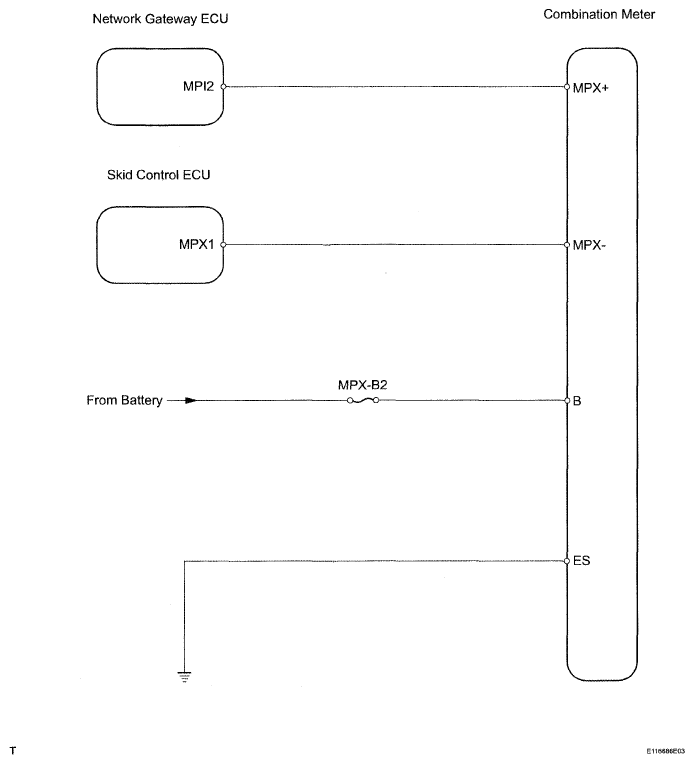

Fig 1: Combination Meter ECU Communication - Wiring Diagram

G05294482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
