DTC P0121: Throttle / Pedal Position Sensor / Switch "A" Circuit Range / Performance Problem: Wiring Diagram

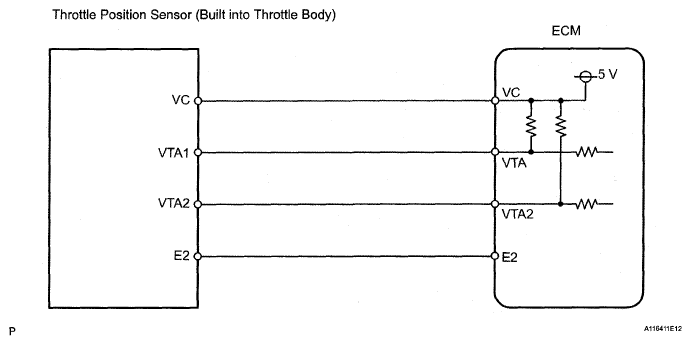

Fig 1: Throttle / Pedal Position Sensor / Switch "A" Circuit Range / Performance Problem - Wiring Diagram
G05291332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
