Confirmation Driving Pattern

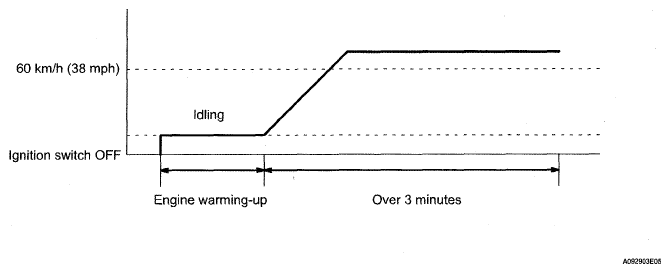

Fig 1: Vehicle Speed Driving Pattern
G05291367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the Techstream to the DLC3.
  2. Allow the engine to idle until ECT reaches 40°C (104°F).
  3. Allow the vehicle to run at 60 km/h (38 mph) or more for 3 minutes or more.
