DTC B1231 Jam Protection Limit Switch Circuit on Driver Door; DTC B1232 Jam Protection Pulse Switch Circuit on Driver Door: Wiring Diagram

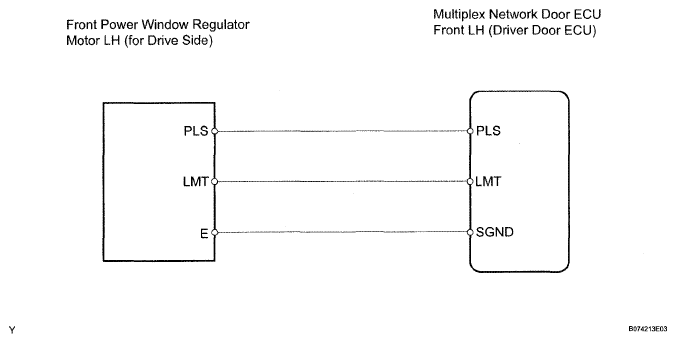

Fig 1: Jam Protection Limit Switch Circuit On Driver Door - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
