Inspection Procedure

1. Connect Techstream (with CAN VIM) to the DLC3.
2. Turn the ignition switch on.
3. Perform the Active Test by following the directions on the tester screen.

   Driver Seat

   TESTER DISPLAY REFERENCE



   Tester Display	Test Part	Control Range	Diagnostic Note
   Seat Reclining	Test detail: reclining operation Vehicle condition: stopped	FRONT/REAR	-
   Front Vertical Operation	Test detail: front vertical operation Vehicle condition: stopped	UP/DOWN	-
   Lifter Operation	Test detail: lifter operation Vehicle condition: stopped	UP/DOWN	-
   Slide Operation	Test detail: sliding operation Vehicle condition: stopped	UP/DOWN	-

   OK: Each power seat motor operates.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Inspect the power seat motor (See INSPECTION  ).

   OK: The power seat motor operates.

NG: REPLACE FRONT SEAT ADJUSTER SUB-ASSEMBLY (POWER SEAT MOTOR)

OK: Go to Next Step

1. Disconnect the position control ECU and switch assembly connector and power seat motor connectors.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   P33-2 (SLD+) - P38-1	Always	Below 1 Ω
   P33-3 (SLD-) - P38-2	Always	Below 1 Ω
   P33-4 (FRV-) - P34-2	Always	Below 1 Ω
   P33-6 (FRV+) - P34-1	Always	Below 1 Ω
   P33-7 (LFT+) - P35-2	Always	Below 1 Ω
   P33-9 (LFT-) - P35-1	Always	Below 1 Ω
   P33-8 (RCL+) - P37-2	Always	Below 1 Ω
   P33-10 (RCL-) - P37-1	Always	Below 1 Ω
   P33-2 (SLD+) - Body ground	Always	10 kΩ or higher
   P33-3 (SLD-) - Body ground	Always	10 kΩ or higher
   P33-4 (FRV-) - Body ground	Always	10 kΩ or higher
   P33-6 (FRV+) - Body ground	Always	10 kΩ or higher
   P33-7 (LFT+) - Body ground	Always	10 kΩ or higher
   P33-9 (LFT) - Body ground	Always	10 kΩ or higher
   P33-8 (RCL+) - Body ground	Always	10 kΩ or higher
   P33-10 (RCL-) - Body ground	Always	10 kΩ or higher

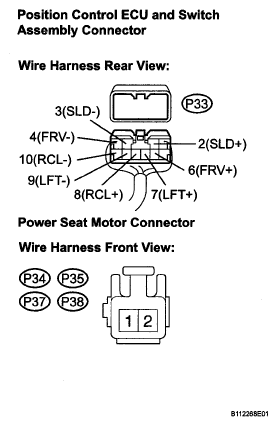

   Fig 1: Identifying Position Control ECU And Switch Assembly And Power Seat Motor Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
