Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Multiplex Communication
>>
Multiplex Communication System
>>
Parts Location
Parts Location

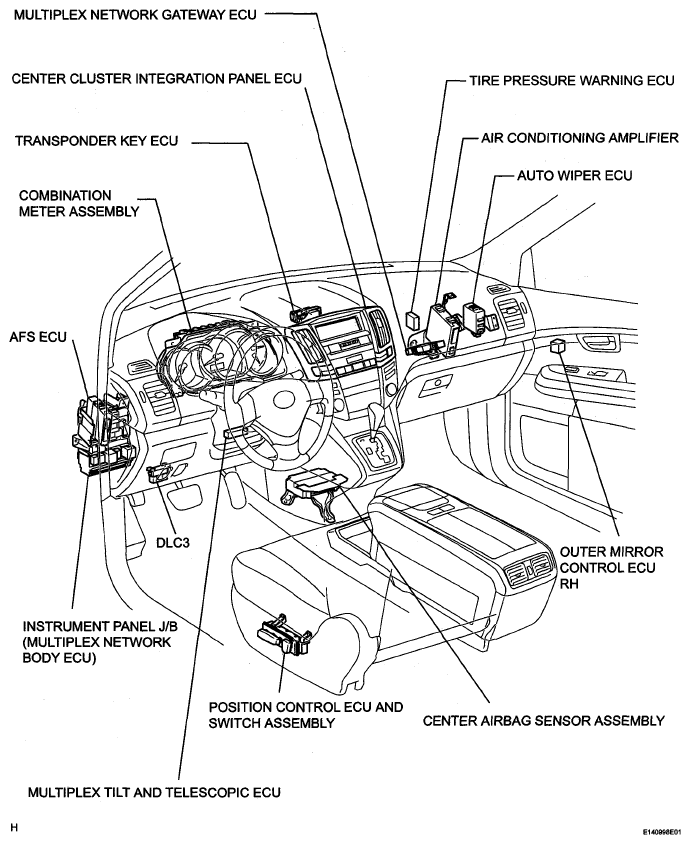

Fig 1: Identifying Multiplex Communication System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

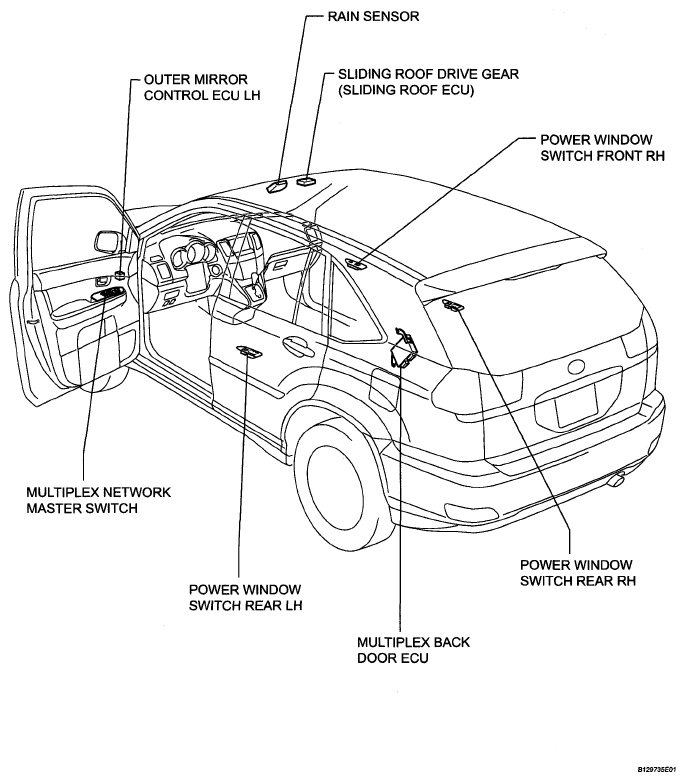

Fig 2: Identifying Multiplex Communication System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
