Sub Radiator: Components

Fig 1: Identifying Sub Radiator Replacement Components With Torque Specifications (1 Of 2)
G05278910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

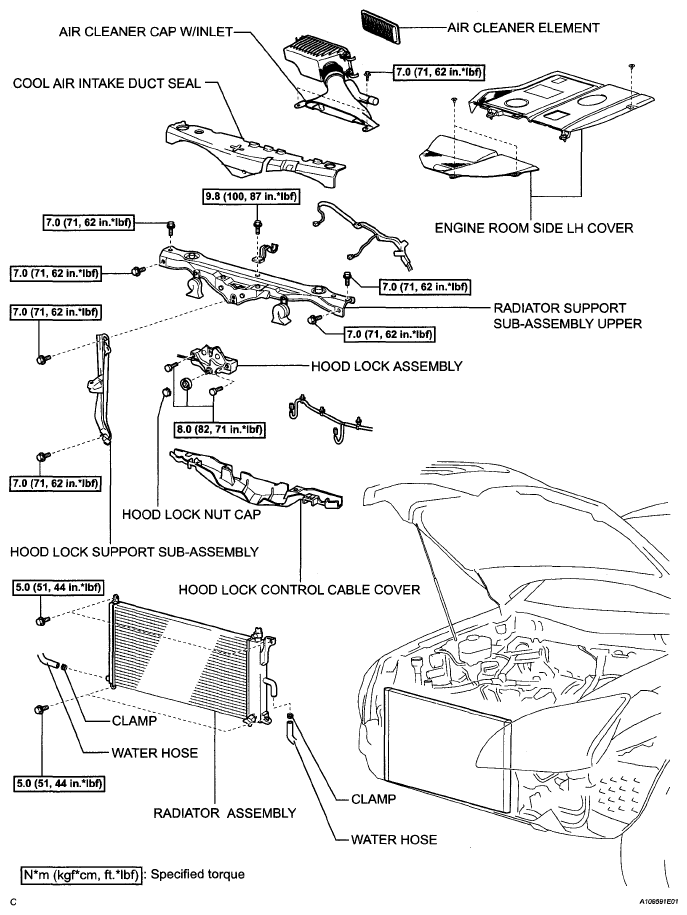

Fig 2: Sub Radiator Replacement Components With Torque Specifications (2 Of 2)
G05278911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
