Inverter With Converter: Components

Fig 1: Identifying Inverter With Converter Replacement Components With Torque Specifications (1 Of 4)
G05275774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Inverter With Converter Replacement Components With Torque Specifications (2 Of 4)
G05277719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

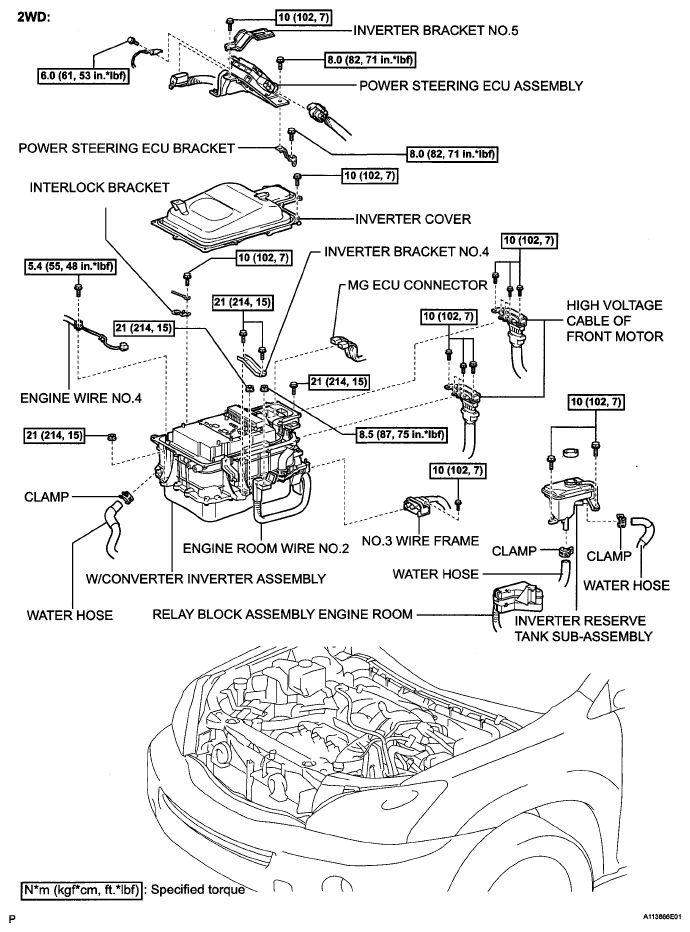

Fig 3: Inverter With Converter Replacement Components With Torque Specifications (3 Of 4)
G05277720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

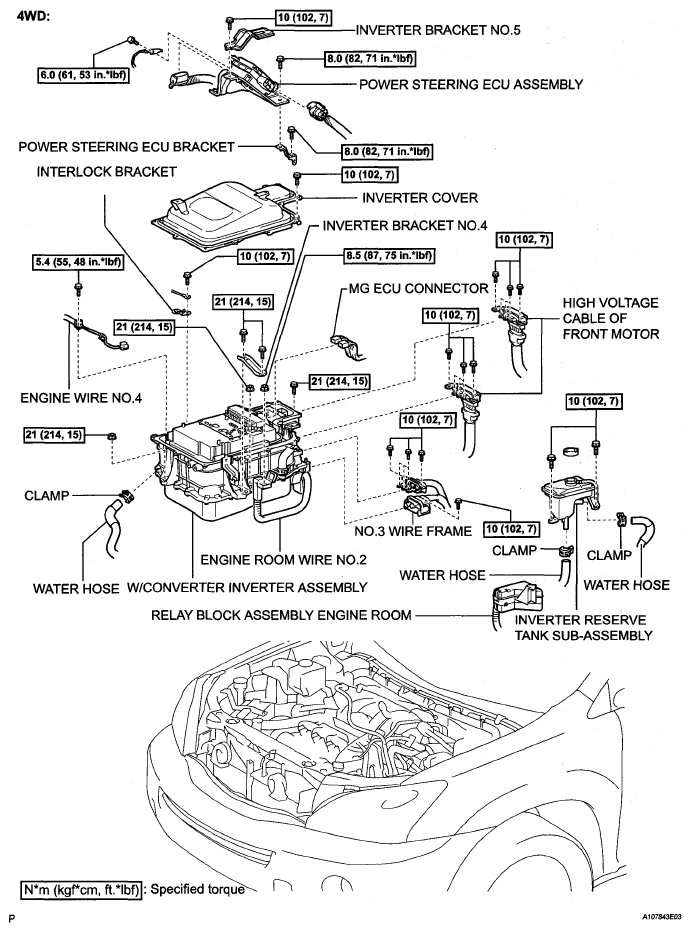

Fig 4: Inverter With Converter Replacement Components With Torque Specifications (4 Of 4)
G05277721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
