Front Circuit Breaker Sensor: Components

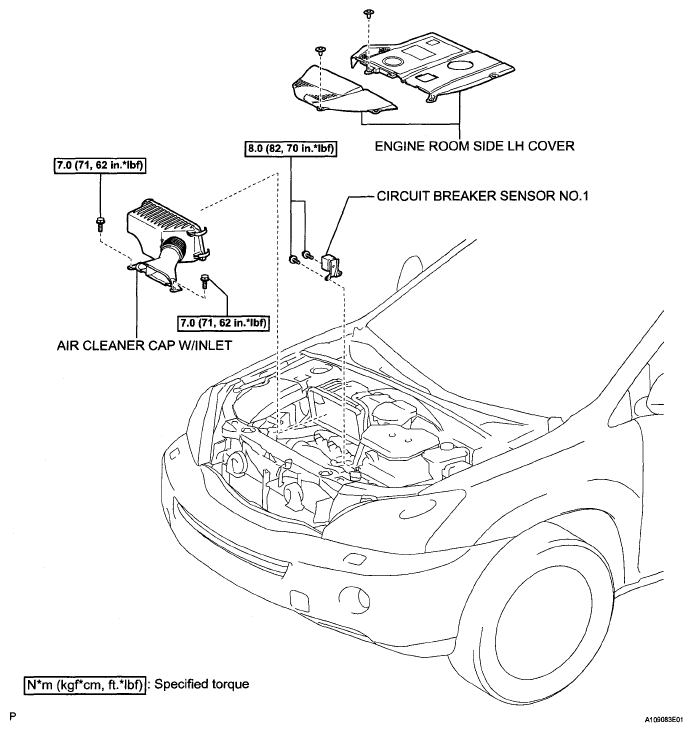

Fig 1: Front Circuit Breaker Sensor Replacement Components With Torque Specifications

G05278981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
