Hybrid Vehicle Immobiliser System: Notes

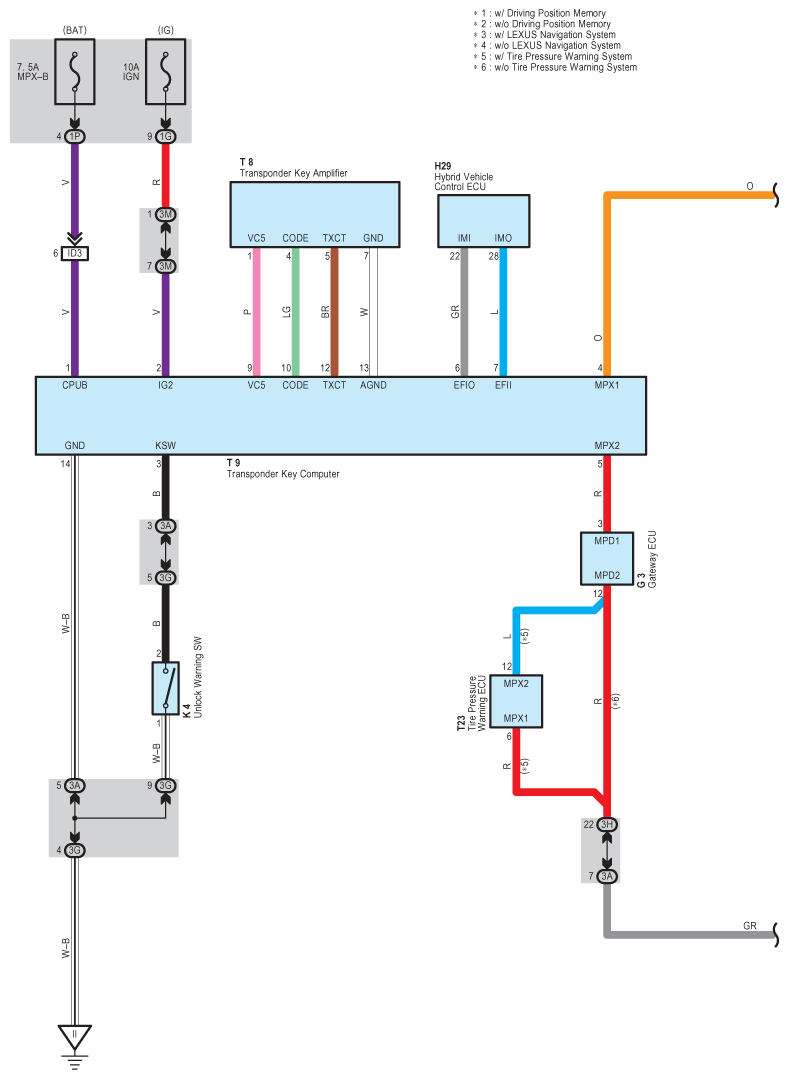

Fig 1: Hybrid Vehicle Immobiliser System - Circuit Diagram (1 Of 2)
G07609813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

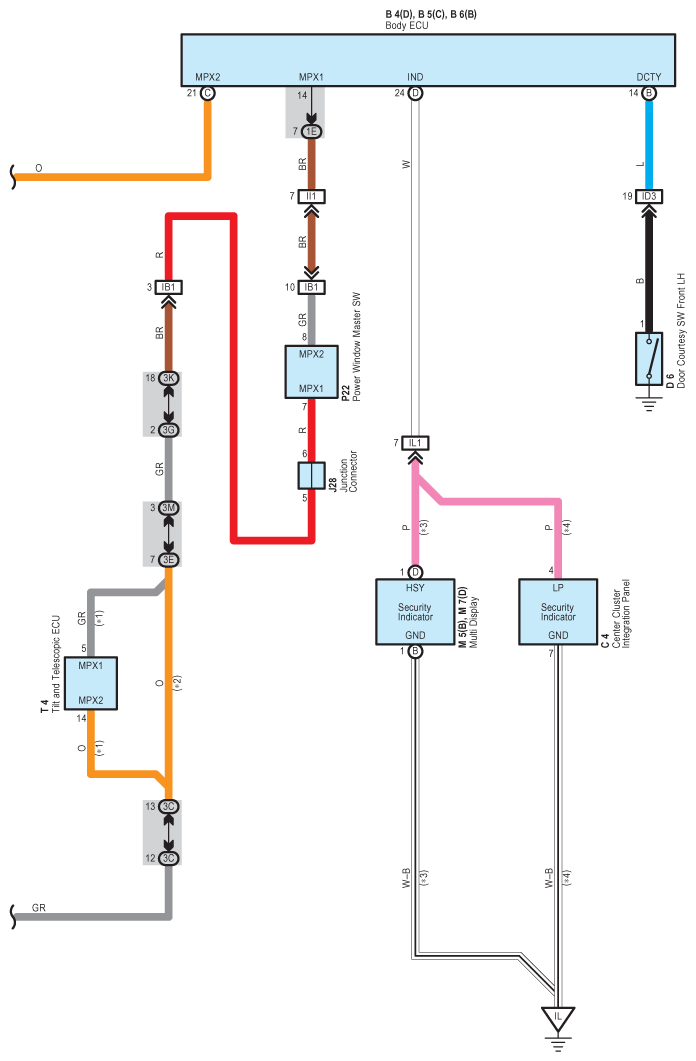

Fig 2: Hybrid Vehicle Immobiliser System - Circuit Diagram (2 Of 2)
G07609814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
