Inspection Procedure

  1. CHECK OPERATION OF SPEEDOMETER
    1. Drive the vehicle and check if the function of the speedometer in the combination meter is normal.

      OK: Actual vehicle speed and the speed indicated on the speedometer are the same.

      HINT:

      The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

    NG:  GO TO COMBINATION METER

    OK: Go to Next Step

  2. INSPECT NAVIGATION ECU
    1. Disconnect the navigation ECU connector N3.
    2. Measure voltage.
      1. Jack up either one of the drive wheels.
      2. Move the shift lever to the neutral position.
      3. Turn the ignition switch to the ON position.
        Fig 1: Identifying N13 Navigation ECU Connector Terminals
        G05270959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Measure the voltage between terminal SPD of the wire harness connector and body ground when the drive wheels are turned slowly.

        OK: Voltage pulses as shown in the illustration.

      Fig 2: Terminal Voltage Pattern
      G04967013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE NAVIGATION ECU

    NG: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - NAVIGATION ECU)
    1. Disconnect the navigation ECU connector N3 and combination meter connector C8.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester connection Condition Specified condition
      SPD - C8-6 Ignition switch off Below 1 Ω

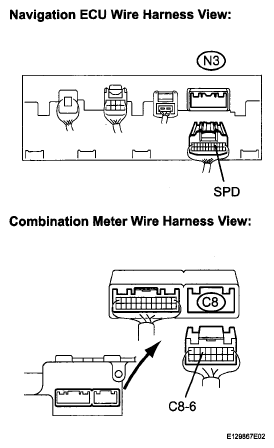

    3. Fig 3: Identifying N3 And C8 Connector Terminals
      G05863909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  4. CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - BODY GROUND)
    1. Disconnect the navigation ECU connector N3.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester connection Condition Specified condition
      SPD - Body ground Ignition switch off 10 kΩ or higher

      HINT:

      If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or ECU.

      Fig 4: Identifying N3 Navigation ECU Connector Terminals
      G05863910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

    OK: REPLACE COMBINATION METER
