Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151E Automatic Transaxle >> UNDERDRIVE Clutch >> Components

UNDERDRIVE Clutch: Components

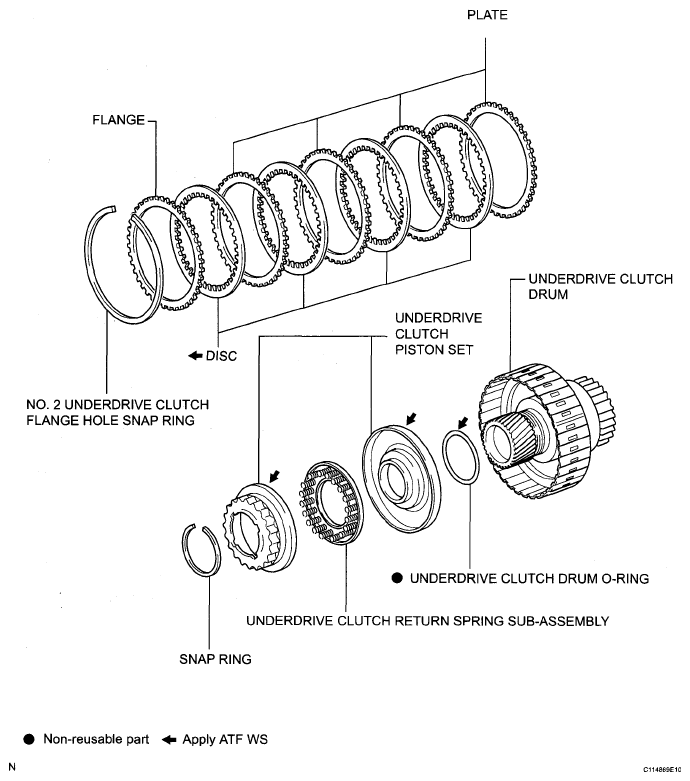

Fig 1: Identifying Underdrive Clutch Components
G05841059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
